Atlantic 46

Algemeen

• Ontwerper: Atlantic Nieuwbouw BV & Van der Stadt Design
• Werf: Atlantic Nieuwbouw
• Diepgang: 130 cm
• Diepgang maximaal: 270 cm
• Lengte waterlijn: 1.180 cm
• Opmerkingen:

  Voor meer informatie (in het Engels) kunt u de bijgevoegde brochure bekijken.


  Lifting keel

  • Electrical/hydraulic system with double working stainless steel cylinder, 3kW generator and separate manual back-up system. The keel system can be managed through control switches from the steering area. Keel dept indication system.


  Steering

  • Jefa double steering system in the cockpit with two single spoke stainless steel steering wheels (900mm) with leather cover.

Accommodatie

• Slaapplaatsen:
• Opmerkingen:

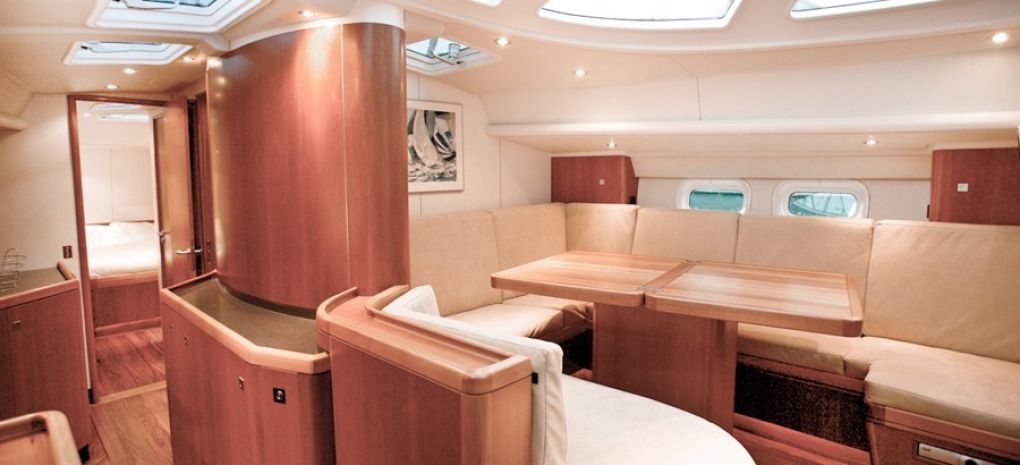

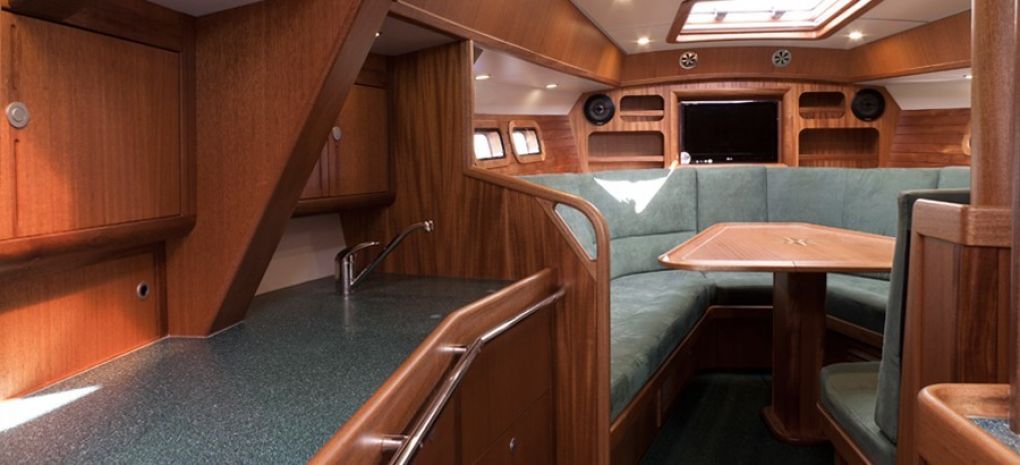

  The interior joinery is high grade and stylishly executed in American cherry chosen by client. Style and standard of finish will be as in any yacht built by us to date.

Motor en elektra

• Aantal identieke motoren: 1
• Type: Binnenboord
• Merk: Yanmar
• Model: 4JH4-TE
• Vermogen: 73 pk
• Opmerkingen:
  • Fuel tank: 640 lt.
  • Water tank: 600 lt.
  • Blackwater tank: 60 lt.

Navigatie en elektronica

• Opmerkingen:

  Navigation lights

  • Aqua signal three-colour masthead with anchor light
  • Aqua signal steaming/deck light
  • Aqua signal port-/starboard lights separate on the pulpi
  • Aqua signal stern light on pushpit.


  Navigation and electronic instruments

  • Cockpit at steering wheels
  • 2 x Plastimo Horizon 135 compass
  • Raymarine ST6002+ autopilot controller
  • Raymarine 240 VHF extra handset


  Near enterance pilothouse

  • Raymarine ST60+ depth-, log, windmeter and close haule


  On the mast

  • VHF antenne


  On the aluminium support afterdeck/cockpit

  • Raymarine Raystar 125 GPS/SD Antenne

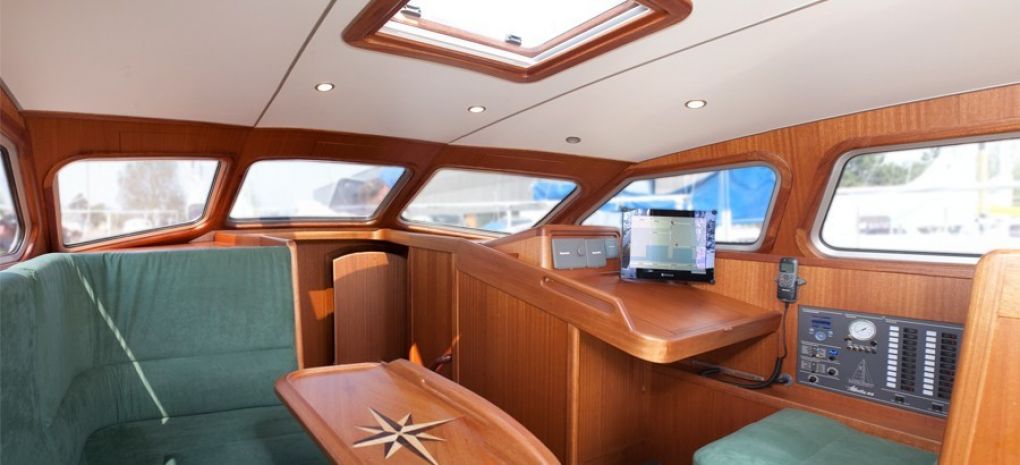

  At navigation desk in pilothouse

  • Raymarine ST60+ graphic multi display
  • Raymarine Ray 240E DSC class D VHF, handset and blackbox
  • Raymarine ST-8002+ autopilot controller
  • Raymarine AIS500 class B transponder
  • SPX-30 corepack autopilot computer set in combination with Jefa direct drive unit 150Nm – 12 Volts complete with shaft and bracket to fit on RG10 gearbox
  • Sea Talk cross over coupler
  • Sea Talk Pactch cable, 10 mtr
  • Seatalk cables and parts

Tuigage

• Zeiloppervlak: 5.580
• Opmerkingen:

  Mast

  • Selden aluminum mast from one piece with conventional masthead, deckstepped, 2 spreaders, untappered, sloop. Spar section C304. FH=17,82m, P=16.05m, BH=1.315


  Boom

  • Selden aluminum boom, E=6,1 m, S= 4,8 m. Spar section B200.
  • Selden rodkick 30S/2200 Hard spring
  • Single line reef system (reef 1 & 2) and
  • 1 slab reef systeem for reef 3, all conform rigging data


  Furling system

  • Furlex furling system FLX400S for Yankee
  • Furlex fruling system FLX300S for Cutterstay


  Standing rig

  • Headstay, backstay (upper part with wireblock), capshrouds and lower shrouds 12mm wire 1 x 19 with rigging screws and studs.
  • Innerforestay, babystay en intermediates 10mm wire 1 x 19 with rigging screws and studs.
  • Backstay leg, 10mm 7 x 19 wire with Selden mechanical backstay tensioner to be operated with winch handle.
  • 2 x Checkstays


  Running rig

  • 1 Main halyard, 14mm Braid with key-shackle
  • 1 Service halyard/Boom toppinglift, 10mm Braid with D-shackle
  • 1 Yankee halyard, 12mm with D-shackle
  • 1 Staysailhalyard, 12mm with D-shackle
  • 1 Outhaul, 12mm including tackle and blocks
  • 2 reeflines,12mm Braid for single-line reefsystem (Reef I and Reef II)
  • 1 set reeflines (outboard and tack-reeflines) for Reef III
  • 1 Mainsheet
  • 2 Yankee sheets
  • 2 Staysail sheets
  • 2 control lines, for genoa/yankee cars
  • * Mainhalyard, reefinglines, outhaul and preventers to be operated from the cockpit


  Sails

  • Made by UK/De Vries Sails. Standard cruising sails, mainsail battened including 3 reefs, Yankee and Staysail. Sail cover for mainsail.

Uitrusting buitenom

• Opmerkingen:

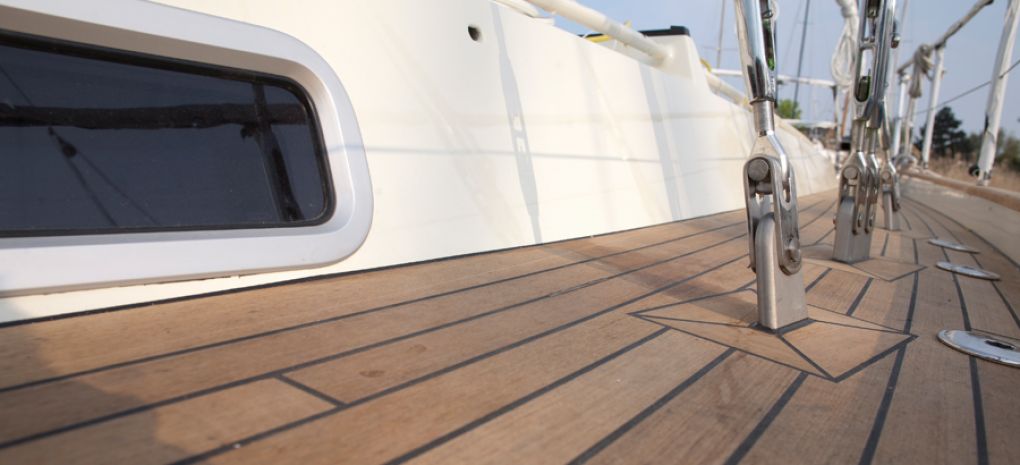

  • Stainless steel pulpit and pushpit.
  • 12x stainless steel stanchions
  • 6x aluminum cleats.
  • 5x Aluminum deck fills for water, fuel and blackwater tanks.
  • Frederiksen deck lay-out for: mainsheet system, self tacking jib system (via sheave in mast), Yankee system plungerstop, mastfoot blocks/organisers/clutches port and starboard, footblocks, clutches near helmsman, Furler system blocks and clutches and running backstays.
  • Andersen self-tailing winches:
  • - 2 x 52ST in cockpit
  • - 2 x 46ST in cockpit
  • - 2 x 28ST on Selden mast
  • 1x Sz 77 Lewmar Medium pofile deckhatch
  • 2x Sz 44 Lewmar Low profile deckhatch
  • 10 x Sz0 Lewmar portlight fixed in hull on Port/Starboard side
  • 4x Sz4 Lewmar portlight opening in superstructure on Port/Starboard side
  • 6x thermic-line fixed and 1 thermic-line opening windows in pilot house
  • 4 x Goiot deck ventilators on atlantic system.
  • 1 x Lewmar V4 electrical anchor winch (24 Volts) with 2 x stainless steel quality footswitch on foredeck.
  • Anchor chain locker under foredeck for 50mtr stainless steel anchor chain (10mm) with Delta anchor (galvanised steel) at front ship.
  • 4x mooring lines and 4x fenders
  • 1x fire extinguishers
  • 1 x automatic fire extinguisher in engine room
  • 1 radar reflector
  • 2 bilge pumps (1 electrical)
  • 1 Gas bottle from Camping Gaz, 3 kg
  • 1 flag, flagstaff and stand
  • 2 Andersen winch handles, Aluminium
  • Double searailing wire with white PVC cover
  • 1 stainless steel boarding ladder
