Alm Spiegelkotter 12.50 OK

General

• Remarks:

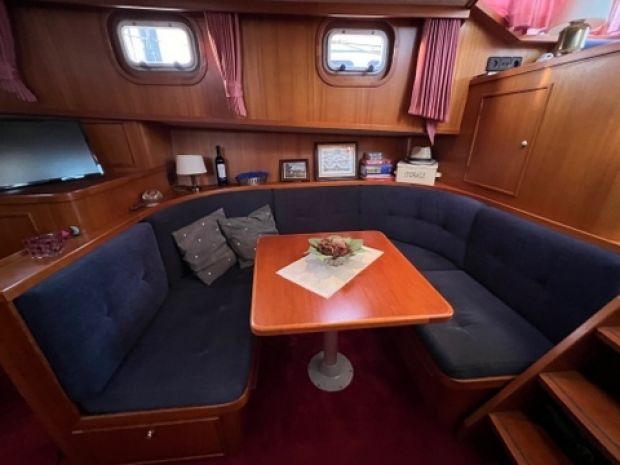

  Alm Spiegelkotter open cockpit, shipyard ingetimmerd yacht with solid teak. Spacious open cockpit with cork floor. You can sail this ship under many bridges because of the low vertical clearance of 2.75 meters. Wheelhouse with steering position and L-shaped bench. Spacious saloon with lots of storage space and galley and opposite the dinette. Combined shower (not in use) / toilet room with storage cabinet. Two V-shaped beds in the forepeak.


  Click here for more information


• Shipyard: Jachtbouw De Alm, Werkendam
• CE-category: Exempt
• Hull shape: Multi-chine
• Hull colour: Blue
• Deck colour: White
• Deck construction: Steel
• Windows: Aluminium windows, single glazed, light tinted
• Cockpit: Aft cockpit
• Open cockpit:
• Vertical clearance: 2.75 m
  with mast 7.00 m
• Minimum height: 275 cm
• Draught: 110 cm
• Displacement: 18,000 kg
• Steering system: Wheel
• Position steering system: Inside + outside
• Rudder: Single
• Comments:

  Technical Specifications

  • Brand: Alm
  • Name: Tarka
  • Type: Mirror Cutter 12.50 OK
  • Year built: 1994, refit 2016
  • Mooring: Neer
  • Shipyard: Jachtbouw De Alm, Werkendam
  • Weight: approx. 18,000 kG
  • Hull shape: multi-keel bilge
  • Lenght: 12.50 m
  • Beam: 4.00 m
  • Draught: 1.10 m
  • Headroom: 2.75 m, with mast 7.00 m
  • Engine: DAF 615 6 cylinder, 120 HP
  • Running hours: approx. 2675
  • Soundproof insulation plates in engine room
  • Maximum speed: approx. 16 km/h
  • Double fuel filter
  • Becker rudder
  • Gearbox hydraulic, Hurth HSW 450-H
  • Hydraulic steering, double also in cockpit
  • Wet exhaust
  • Water lubricated propeller shaft
  • 4-blade propeller
  • Bow thruster electric, Duco 24V 12 HP
  • Aluminum windows, single glazed, slightly tinted
  • Fuel tank: 1000 liters with drain and sight glass, steel
  • Water tanks: 2x 400 liters stainless steel
  • Holding tank: 200 liters stainless steel
  • Berths: 2 + 2
  • Cabins: -
  • Carpentry: solid teak, floor marmoleum with ship parquet design and carpeting at dinette/ galley and forepeak

  Electrical installation

  • 12/24/230V
  • Shore power
  • Shore cable
  • Battery charger: Mastervolt 35A Dakar combi
  • Extra battery charger for starter batteries (separate)
  • Lighting batteries: 2 x 230 Ah
  • Starter/bowthruster batteries: 2 x 230 Ah
  • Inverter: Mastervolt Dakar 1800W combi
  • Isolation transformer: Victron 3600W
  • Solar panel 350W with regulator from Cepever
  • Alternator

  Dashboard equipment

  • Hour counter
  • Temperature gauge
  • Oil pressure gauge (acoustic alarm at steering position)
  • Voltmeter
  • Rudder indicator: Vetus
  • VHF radio: Lowrance Link 8
  • 2 Wipers parallel
  • Navigation lights
  • Horn
  • Aluminium mast with folding option

  Kitchen equipment

  • Four burner gas stove: Gimeg with cover
  • Sink and faucet
  • Refrigerator: 120 liters with freezer compartment
  • Centrifuge
  • Geyser: Janker (not in use!)

  Wet cell

  • Combined shower/toilet room with electric toilet and storage cabinet (shower not in use)

  Exterior equipment

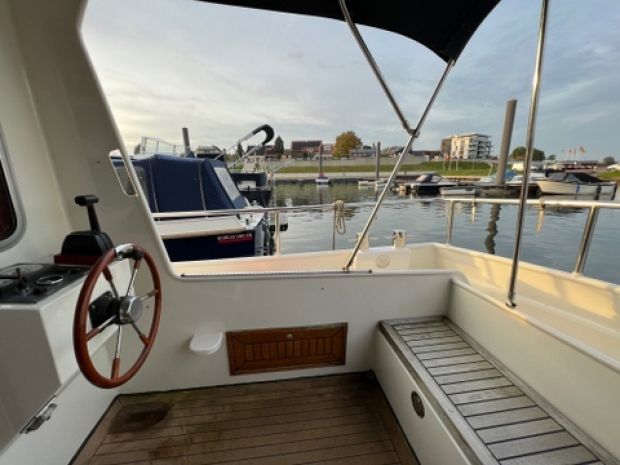

  • Open cockpit with bimini
  • Hydraulic steering in cockpit
  • Stainless steel bollards
  • Stainless steel hand railing
  • Electric anchor winch
  • Stainless steel anchor
  • Hatch
  • 2 Teak doors to saloon
  • Fenders
  • Rubber fenders in stainless steel profile
  • SS bathing ladder
  • Swimming platform with stainless steel bumper and aluminum bulb plate
  • Entrance to engine roomFenders
  • Winter tent over cockpit
  • Paintwork of 2016 in 2-component of IJssel
  • Anti-fouling of 2017

  Accessories / extras

  • Heating Webasto hot air on diesel
  • Hydrophore and water pump
  • Hot water via geyser
  • Radio system with CD: Sony
  • Television Philips LCD with digitenne
  • Steering chair
  • Mattresses
  • Fire extinguishers
  • Insulation, extra isolated
  • CE: exempt
  • Deck wash pump
  • Bilge pump
  • Blue fabrics, old pink curtains
  • Outside steering in cockpit

  Dimensions

  • Headroom saloon: 195/200 cm
  • Headroom forward cabin: 195 cm
  • Headroom wet room: 195 cm
  • Beds in point: 2 x 90 x 200 cm
  • Bed on dinette: 140 x 200 cm

  Layout

  Spacious salon with steering position, to port the galley and to starboard the dinette. On port side the combined shower/toilet room with storage cabinet. In the forepeak the master cabin with wide V-shaped bed. Wide gangways all around. Open cockpit with second steering position and doors to saloon.

  Disclaimer

  The specifications are as stated by the owner and/or manufacturer. No rights can be derived from this.

  The specifications are provided by the owner and / or manufacturer. No rights can be derived from this.

  Die Angaben beziehen sich auf Eigentümer und/ oder Hersteller. Hieraus können keine Rechte abgeleitet werden.

Accommodation

• Saloon:
• Headroom: 195 cm
• Separate Dining area:
• Berths: fixed: 2 Extra: 2
• Type interior: Classic, warm
• Color upholstery: Blue
• Mattresses:
• Cushions:
• Curtains:
• Water tank & material: 800 litre Stainless steel
  2 x 400 liters stainless steel
• Water tank gauge:
• Waste water tank: 200 Litre Stainless steel
• Waste water tank gauge:
• Waste water tank drainpump:
• Deck suction:
• Water system: Pressure system
  Hydrophore and water pump
• Hot water: Hot water via geyser, Janker (not in use!)
• Outside water: Deck wash pump
• Number of showers: 1
  (shower not in use)
• Toilets: 1 Electric
• Television: Philips LCD with digitenne
• Radio/CD player: Radio system with CD: Sony
• Cooker & fuel: 4 burner(s) Gas
  Gimeg with cover plate
• Fridge & power source: 120 Litre Electric
• Heating: hot air
  Webasto diesel hot air

Engine, electrics

• Number of identical engines: 1
• Starting type: Electric
• Type: Inboard
• Brand: DAF
• Model: 615
• Year: 1994
• Number of cylinders: 6
• Power: 120 hp
• Hours counter:
• Engine hours: 2,675
• Fuel: Diesel
• Fuel consumption: 4 litre/hour
• Gearbox: hydraulisch, Hurth HSW 450-H
• Transmission: Shaft
• Propulsion: Propellor
• Cooling system: Indirect
• Fuel tanks: 1
• Total fuel tank(s) capacity: 1,000 Litre
• Fuel tank material: Steel
• Max speed: 16 km/h
• Cruising speed: 12 km/h
• Fuel tank gauge:
• Tachometer:
• Oil pressure gauge:
• Temperature gauge:
• Bow thruster: Electric
  Duco 24V 12 HP
• Battery: 4 x 230 Ah
  Light batteries: 2 x 230 Ah, Starter/bowthruster batteries: 2 x 230 Ah
• Battery charger: 35 A
  Mastervolt 35A Dakar combi
• Alternator:
• Inverter: 1.800 Watt
  Mastervolt Dakar 1800W combi
• Voltmeter:
• Shore power:
• Shore power cable:
• Solar panel: 350 Watt
  Solar panel 350W with controller from Cepever
• Voltage: 12V 24V 220V

Navigation and electronics

• Navigation lights:
• Rudder position indicator: Vetus
• VHF: Lowrance Link 8

Rig and sails

• Number of masts: 1
  foldable
• Spars material: Aluminium

Deck Equipment

• Anchors & material: 1 x Stainless steel
• Anchor connection: Chain
• Anchor windlass: Electric
• Bimini:
• Outdoor cushions:
• Sea rails: STAINLESS STEEL
• Swimming platform: Bathing platform with stainless steel bumper and aluminum tear plate
• Swimming ladder: STAINLESS STEEL
• Teak deck:
• Fenders, lines:

Safety

• Bilge pump: Electric
• Fire extinguisher:
• Gas bottle locker with drain:
• Self-draining cockpit:

This boat data may have been translated into your language via an automatic translation program. Errors can occur during this process. Ask the seller for complete boat details before purchasing.
