Kiel Classic 28 Passenger Ship 12 Persons

General

• Remarks:

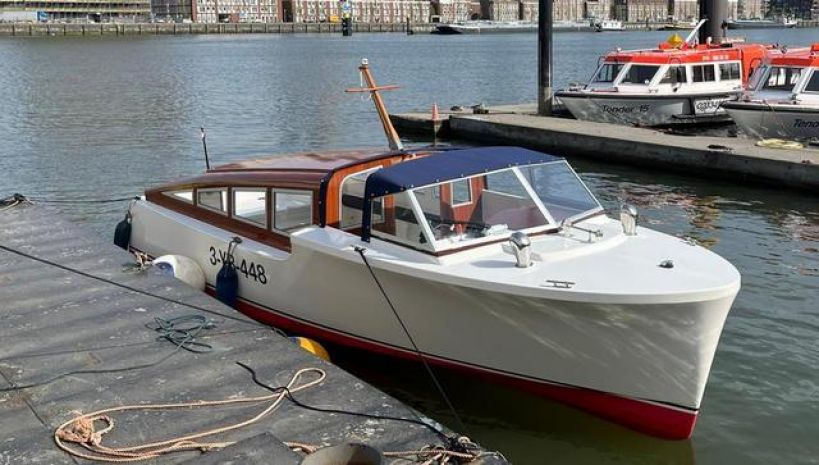

  Chic yard-built Kiel Classic. Spacious aft deck with hatch to engine room and lounge for passengers, wheelhouse with steering position and targa roof. You can sail all over the Netherlands with this ship because of the very low vertical clearance of 2.30 meters. The yacht has a very spacious saloon for 12 people and a toilet. Ideal for larger groups or to sail very fast. Price is excluding VAT.


  Click here for more information


• Shipyard: Amen & Zoon, Rotterdam
• Hull shape: V-bottom
• Hull colour: White
• Deck colour: White
• Deck construction: Grp (polyester)
  polyester with woodwrap
• Windows: Aluminium windows, single glazing
• Cockpit: Aft cockpit
• Open cockpit:
• Vertical clearance: 2.3 m
• Minimum height: 230 cm
• Draught: 80 cm
• Displacement: 3,000 kg
• Steering system: Wheel
• Position steering system: Inside
• Rudder: Single
• Trimflaps: elektronische trim
• Comments:

  Technical Specifications

  • Brand: Kiel
  • Year built: 2017 (hull), 2022 in the water
  • Shipyard: Amen & Son, Rotterdam
  • Mooring: Rotterdam
  • Weight: ca. 3.000 kG
  • Hull: polyester
  • Decks and gangways: polyester
  • Rear deck with engine hatch and bench
  • Superstructure: polyester with woodwrap
  • Hull shape: V-bottom
  • Length: 9.50 m
  • Width: 2.30 m
  • Draught: 0.80 m
  • Vertical clearance: 2.30 m
  • Engine: Mercury TDI V6 turbo diesel, 6 cylinder, 260 HP with electronic engine control and trim
  • Running hours: about 10
  • Maximum speed: approx. 65 km/hour
  • Reverse gear: hydraulic
  • Hydraulic steering
  • Bow thruster: Maxpower
  • Wet exhaust
  • 2 Stainless steel duoprop propellers 24″
  • Heck drive: (z-drive) Mercruiser Bravo Three
  • Aluminium windows, single glass
  • Fuel tanks: 2 x 240 liter polyester
  • Cabins: -
  • Persons: 12
  • Carpentry: HPL and polyester

  Electrical installation

  • 12/230V
  • Shore power
  • Shore power cable
  • Light battery: 140 Ah
  • Starter battery: 80 Ah
  • Alternator
  • Battery charger: Victron Blue Smart

  Equipment dashboard

  • VHF radio: Standard Horizon Eclipse
  • Hour counter
  • Temperature gauge
  • Fuel gauge
  • Oil pressure gauge (audible alarm at steering position)
  • Voltmeter
  • Tachometer
  • Trim gauge
  • Rudder indicator: VDO
  • Compass
  • Navigation lights
  • Horn
  • Windshield wiper

  Wet cell

  • Electric toilet

  Equipment exterior

  • Wheelhouse with steering position
  • Stainless steel bollards and 2 stainless steel side bollards
  • Entrance via side and rear door
  • 4 Aluminium windscreens
  • Targa hood
  • Air hoppers
  • Loose anchor aluminum
  • Stainless steel bumper around swimming platform
  • Mahogany mast, foldable
  • Mooring ropes
  • Bilge pump

  Accessories/ extras

  • Fire extinguishers
  • Blue cushions, water resistant
  • HPL floors with ash trim and compass rose
  • LED cockpit lights
  • No CE

  Dimensions

  • Headroom salon / wheelhouse: 200 cm
  • Headroom in front saloon: 200-190 cm
  • Headroom wet room: 215 cm

  Layout

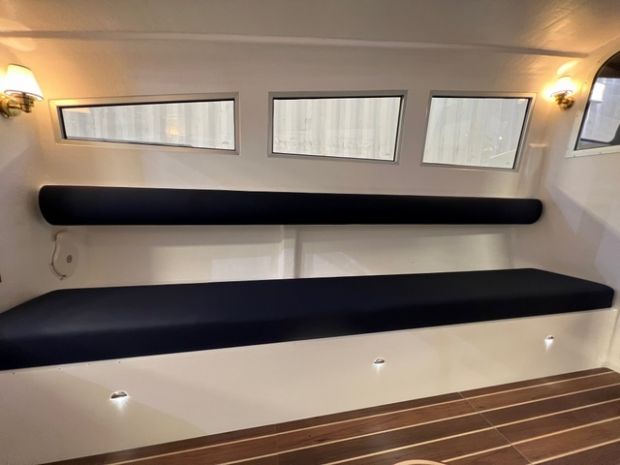

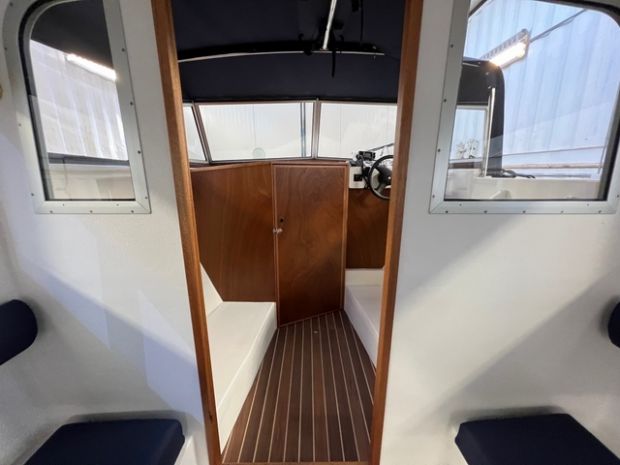

  Spacious wheelhouse with steering position, saloon with many (12) places. Rear deck with engine hatch. Toilet in point.

  Disclaimer

  The specifications are provided by the owner and/or manufacturer, no rights can be derived from this.

  The specifications are provided by the owner and/or manufacturer, no rights can be derived from this.

  Die Angaben beziehen sich auf Eigentümer und / oder Hersteller, hieraus können keine Rechte abgeleitet werden.

Accommodation

• Saloon:
• Headroom: 200 cm
• Berths:
• Type interior: Modern, light
• Color upholstery: Blue
• Cushions:

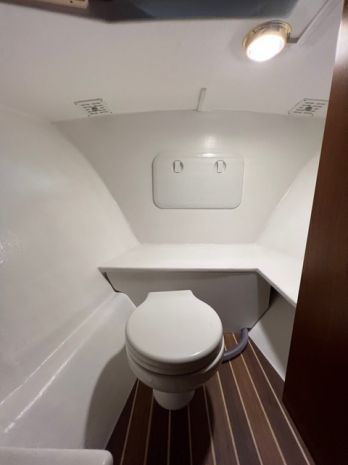

• Toilets: 1 Electric

Engine, electrics

• Number of identical engines: 1
• Starting type: Electric
• Type: Inboard
• Brand: Mercury
• Model: TDI V6 turbodiesel
• Year: 2021
• Number of cylinders: 6
• Power: 260 hp
• Hours counter:
• Engine hours: 10
• Fuel: Diesel
• Fuel consumption: 3 litre/hour
• Gearbox: hydraulisch
• Transmission: Stern drive
• Propulsion: Propellor
  Heck drive: (z-drive) Mercruiser Bravo Three
• Cooling system: Indirect
• Fuel tanks: 2
• Total fuel tank(s) capacity: 480 Litre
• Fuel tank material: Epoxy
• Max speed: 65 km/h
• Fuel tank gauge:
• Tachometer:
• Oil pressure gauge:
• Temperature gauge:
• Bow thruster: Electric
  Maxpower
• Battery: 2 x 140 Ah
  Light battery: 140 Ah, Start battery: 80 Ah
• Battery charger:
  Victron Blue Smart
• Alternator:
• Shore power:
• Shore power cable:
• Voltage: 12V 220V

Navigation and electronics

• Compass:
• Navigation lights:
• Rudder position indicator: VDO
• VHF: Standard Horizon Eclipse

Rig and sails

• Number of masts: 1
  Mahogany mast, foldable
• Spars material: Wood

Deck Equipment

• Anchors & material: 1 x Aluminium
• Anchor connection: Rope
• Sprayhood: Targa hood
• Outdoor cushions:
• Swimming platform: Stainless steel bumper around swimming platform
• Fenders, lines:

Safety

• Bilge pump: Electric
• Fire extinguisher:

This boat data may have been translated into your language via an automatic translation program. Errors can occur during this process. Ask the seller for complete boat details before purchasing.
