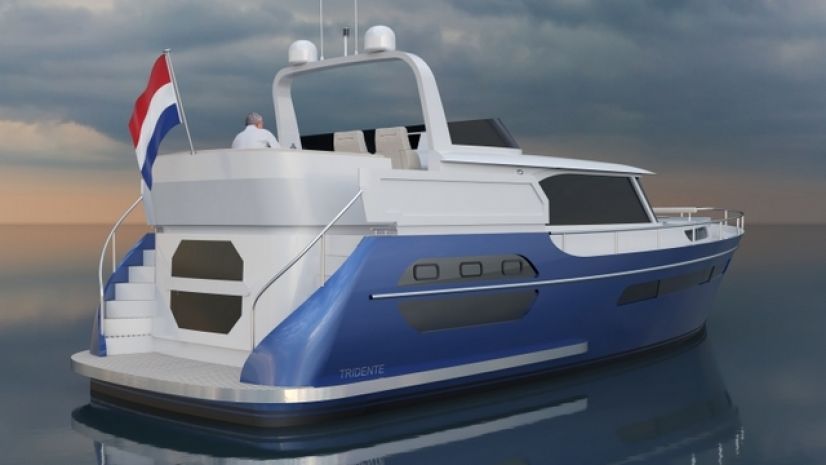

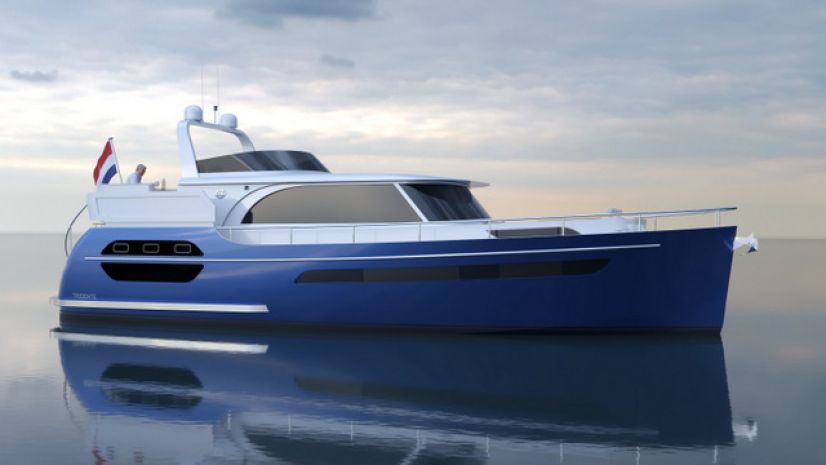

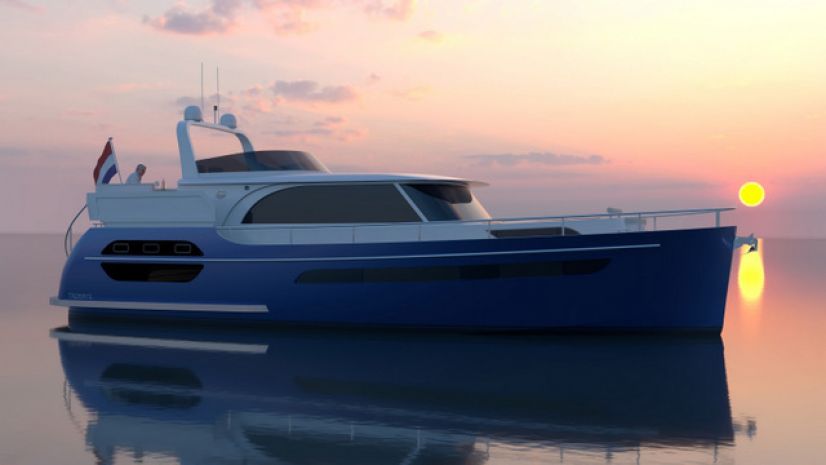

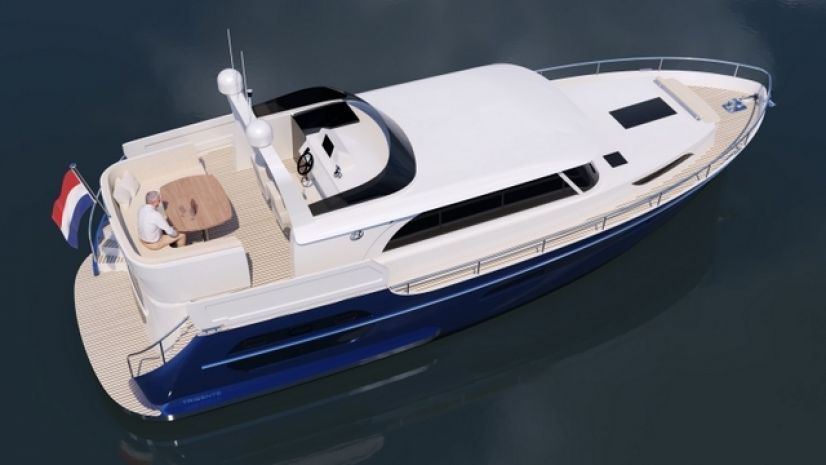

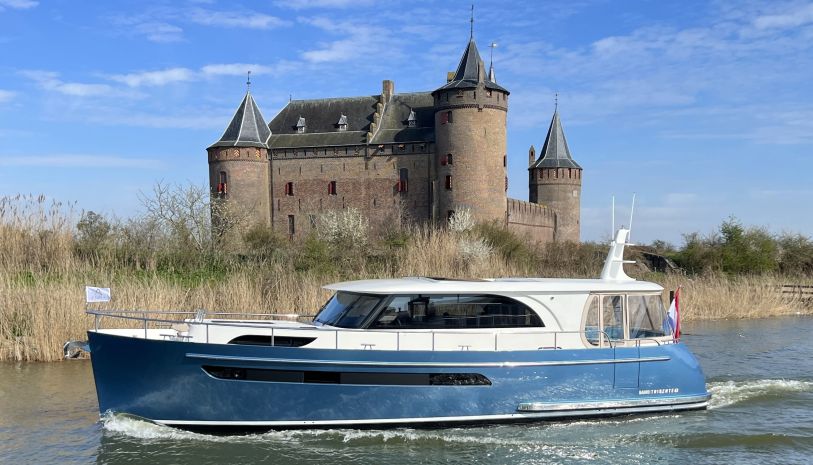

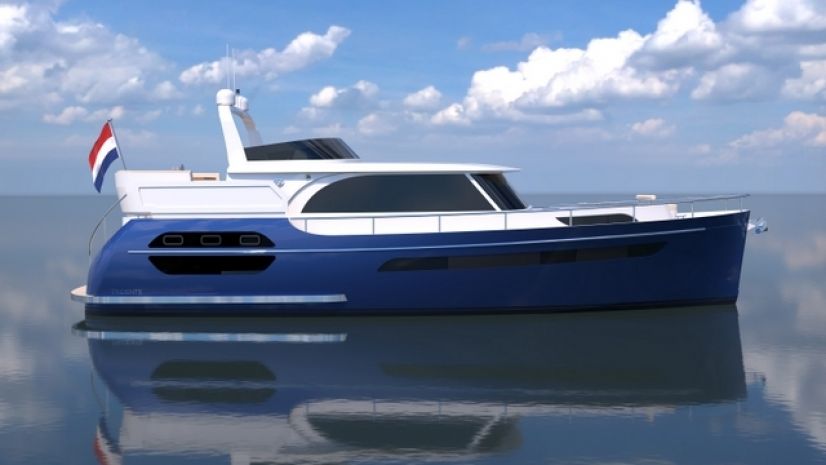

Babro Tridente 43 / 50 / 57 Open Cockpit OC AC Pilothouse En Flybridge

General

• Remarks:

  The latest Babro models are built on great comfort while being suitable for higher speeds. This line Tridente are solid motor yachts made of steel or in an aluminum version is also possible.

  The Babro Tridente possesses a comfortable interior that belongs to her class. In the cozy layout of the ship you will feel at ease in no time. Equipped with one or two engines of 170 to 350 HP, you will choose for quiet sailing waters, but with the two possible diesel engines in the 55 of at least 600 HP, the Babro Tridente reaches a top speed of 10.5 knots!

  Of course, like all other Babro yachts, the Tridente can be fully customized to your needs.

  Available from:

  Babro Tridente 43 € 495.000,-*

  Babro Tridente 50 € 585.000,-*

  Babro Tridente 55 € 995,000.-*

  *excluding VAT


  Click here for more information


• Shipyard: Babro Yachting Sneek
• CE-category: B
• Hull shape: Multi-chine
• Hull colour: Blue
• Deck colour: White
• Deck construction: Steel
• Cockpit: Aft cockpit
• Flybridge:
• Open cockpit:
• Aft cockpit:
• Vertical clearance: 2.85 m
• Minimum height: 285 cm
• Draught: 120 cm
• Displacement: 19,500 kg
• Steering system: Wheel
• Position steering system: Inside + outside
• Rudder: Single
• Comments:

  Technical specifications

  • Length: 13.00 / 15.00 / 17.50 m
  • Width: 4.50 / 4.70 / 4.95 m
  • Draft: 1.15 m
  • Carry height: 2.85 m
  • Water tank approx: 600 l
  • Displacement: 19.500 kG
  • CE category: B or A if required

  Engine room

  • From Volvo Penta D3 5 cylinder 81 KW 150 HP (whisper quiet engine).
  • Luxury electronic engine control
  • Hydraulic gearbox
  Homokinetic coupling between engine and propeller shaft (low vibration drive)
  • Engine foundation 12 mm
  • Screw shaft stainless steel 45 mm water lubricated
  • 4 bladed propeller gunmetal
  • Engine on sound attenuating and flexible engine mounts
  • Cooling system intercooling with wet exhaust and matching waterlock
  • Fuel tank steel with baffle plate (large radius of action)

  Construction

  • Hull shape multicraft (CE category B)
  .
  • Hull and underwater hull 5 mm steel
  • Keelsole 12 mm steel
  • Decks and superstructure 5 mm steel
  • Superstructures cut.
  • Longitudinal trusses cut.
  • Cut deck trusses

  Technology

  • Drinking water tank stainless steel or plastic.
  • Drinking water pump automatic
  • Drinking water pump automatic with pressure tank
  • Full plastic water pipe system
  .
  • Fecal tank 200 l with suction cap on deck and electric feacal pump
  • Diesel hot air heating with thermostat
  • Electric bilge pumps for engine room
  • Screw electric 125 KGF

  Electrical installation 24 / 230 volts

  • Starting batteries 24 V 2 x 105 Ah with main circuit breaker
  • Batteries 24 V 4 x 140 Ah with battery switch
  .
  • Wall socket 230V on deck
  • Accumulator/inverter Victron Multiplus 24/2000/50
  • Automatic shore power/inverter changeover
  • Fuse box 220V 2 circuit breakers with circuit breakers
  • Power outlets 220V 10 pcs
  • 24V system 2 conductors with numbered connections
  • 24V panel with circuit breakers
  • Halogen / LED interior lighting with switches
  • Bed reading lights 2x in sleeping cabin.
  • Deck wash pump with connection on deck
  • Skirt shower on bathing platform

  Steering position / Deck

  • Steering wheel 55 cm. Or in consultation.
  Window wipers 3x with parallel arm
  • Cabrio cover over cockpit
  • Instrument panel engine with : Tachometer, Hour meter, Cool water temperature gauge, Oil pressure gauge, Charge current monitoring, Optical and acoustic alarm, Water tank gauge, Depth gauge, Fuel gauge, fecalint tank gauge
  Fenders 6 x with lines 80 x 25
  • Hydraulic steering
  • Automatic fire extinguisher in engine room
  • Fire extinguishers 1 x 2 kg and 1 x 1 kg
  . .

  Exterior

  • Stainless steel railing with upper beam
  .
  • RVS swim ladder from swimming platform into the water
  .
  • RVS bollards 10 x
  • RVS frogs amidships 2 x
  • RVS handrails on the saloon roof
  • RVS fender baskets 4 x - 2 double forward
  • Hand windlass with stainless steel anchor polished with 50 m chain
  • Instrument mast
  • Navigation lights according to Dutch law
  • Aluminum anodes 6 x
  Patri ports in aluminum profile with tinted glass
  • Forward escape hatch in aluminium profile with tinted glass

  Interior

  • Interior entirely in teak or modern with designer plastic
  • Insulation PU foam 5 cm
  .
  • Division with 2 shower/toilet rooms. 1 standard, 2nd optional
  • 2nd guest cabin
  • 3rd guest cabin with toilet/shower room optional
  • Shower room separate from toilet standard
  • 2nd shower/toilet room optional
  • Shower with sliding bar and thermostatic faucet
  • Shower drain pumps 24 volts
  • Electric toilet with overboard selection tap/dirty water tank
  • Sink with 1 trade faucet
  Floor in shower and toilet in plastic .
  • Saloon table with robust solid frame
  .
  • Fridge-freezer 130 ltr. 24 V
  • Hob gas 4 burners
  • Extractor in kitchen
  .

  Conservation

  • Hull shell made of blasted steel
  • Casco sandblasted and coated inside and out
  .
  • Inside and outside treated with two component epoxy-primer
  .
  • Casco entirely filled with two component epoxy-filler
  .
  • Two component intermediate primer as control and finishing coat
  • Topcoat on correct layer thickness
  Anti-skid on aft deck, gunwale and foredeck
  • Top coat hull and superstructure in 2-component metallic paint of your choice

  Accommodation

  • Saloon:
  • Headroom: 200 cm
  • Engine room:
  • Cabins: 2
  • Berths: fixed: 4
  • Type interior: Modern, wood look
  • Color upholstery: Orange
  • Mattresses:
  • Cushions:
  • Curtains: plisé
  • Water tank & material: 600 litre Plastic
  • Water tank gauge:
  • Waste water tank: 200 Litre Plastic
  • Waste water tank gauge:
  • Waste water tank drainpump:
  • Deck suction:
  • Water system: Pressure system
  • Hot water:
  • Outside water: Deck wash pump Deck Shower
  • Number of showers: 2
  • Toilets: 1 Electric
  • Television: Sony op lift
  • Radio/CD player:
  • Cooker & fuel: 4 burner(s) Induction
    Beko
  • Oven:
  • Microwave:
  • Fridge & power source: 190 Litre Electric
    Siemens
  • Freezer:
  • Heating: Central heating
    Kabola met rediatoren

  Engine, electrics

  • Number of identical engines: 1
  • Starting type: Electric
  • Type: Inboard
  • Brand: Volvo Penta
  • Model: D-3-150
  • Year: 2023
  • Number of cylinders: 5
  • Power: 150 hp
  • Hours counter:
  • Engine hours: 1
  • Fuel: Diesel
  • Fuel consumption: 5 litre/hour
  • Gearbox: Volvo
  • Transmission: Shaft
  • Propulsion: Propellor
  • Cooling system: Indirect
  • Fuel tanks: 2
  • Total fuel tank(s) capacity: 800 Litre
  • Fuel tank material: Steel
  • Max speed: 17 km/h
  • Cruising speed: 13 km/h
  • Fuel tank gauge:
  • Tachometer:
  • Oil pressure gauge:
  • Temperature gauge:
  • Bow thruster: Electric
    185 kGF proportioneel bedienbaar
  • Stern thruster: Electric
    185 kGF proportioneel bedienbaar
  • Battery: 12 x 220 Ah
  • Battery charger: 120 A
    Victron Combi
  • Alternator: 150 A
  • Battery monitor:
  • Inverter: 5.000 Watt
    Victron Combi
  • Voltmeter:
  • Shore power:
  • Shore power cable:
  • Consumption monitor:
  • Voltage: 12V 24V 220V

  Navigation and electronics

  • Compass:
  • Log/speed:
  • Depth gauge:
  • Navigation lights:
  • Rudder position indicator:
  • GPS: Raymarine
  • Chart plotter: Raymarine
  • VHF:

  Rig and sails

  • Number of masts: 1
  • Spars material: Other
    klapbaar

  Deck Equipment

  • Anchors & material: 1 x Stainless steel
  • Anchor connection: Chain
  • Anchor windlass: Electric
  • Cockpit tent:
  • Outdoor cushions:
  • Sea rails: Ovale RVS railing
  • Swimming platform: met flexiteak belegd
  • Swimming ladder: RVS
  • Fenders, lines:

  Safety

  • Bilge pump: Electric
  • Fire extinguisher:
  • Self-draining cockpit:
