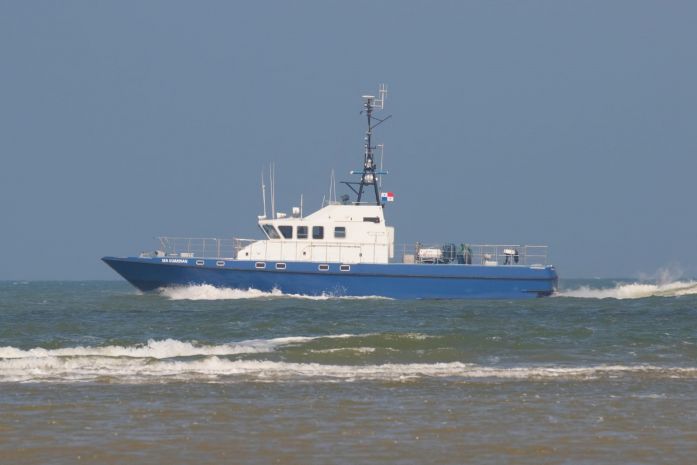

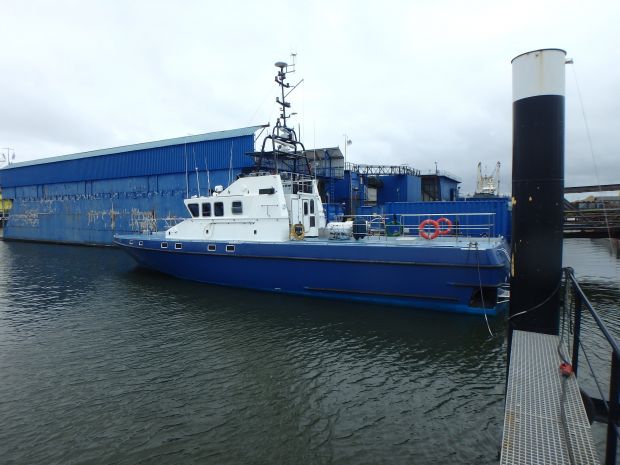

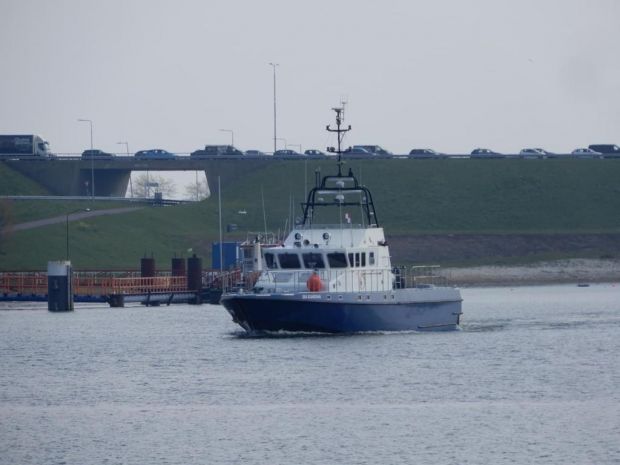

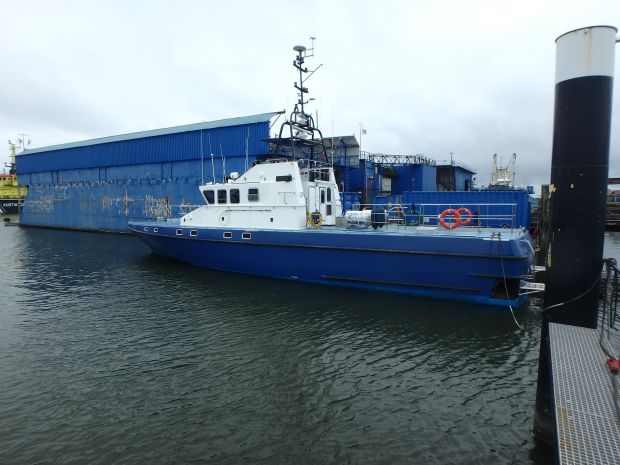

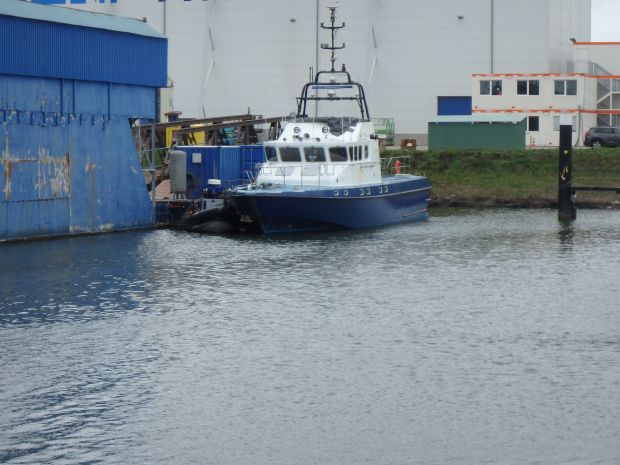

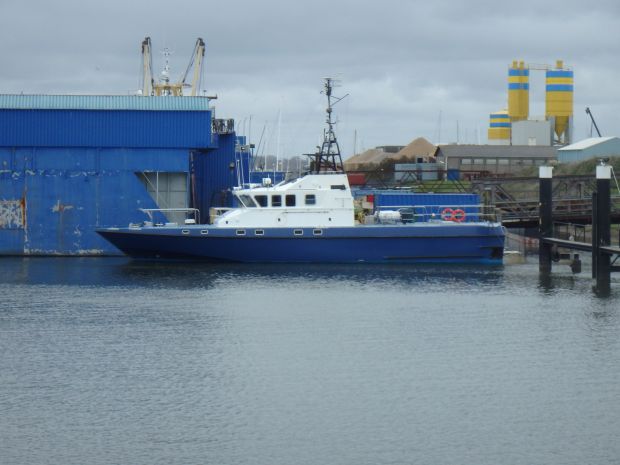

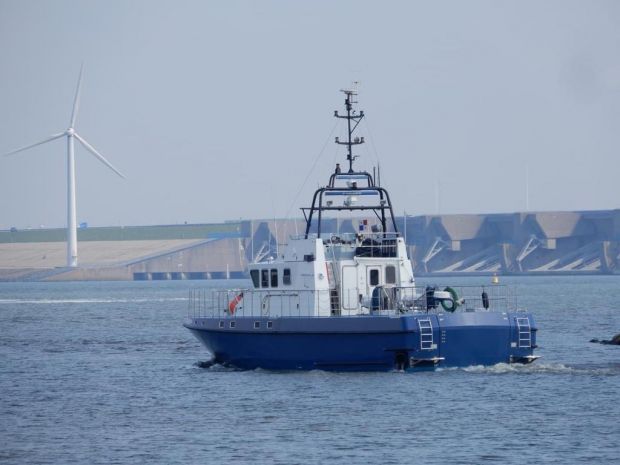

Ex-patrouillevaartuig David M Cannell

General

• Remarks:

  SPECIFICATIONS

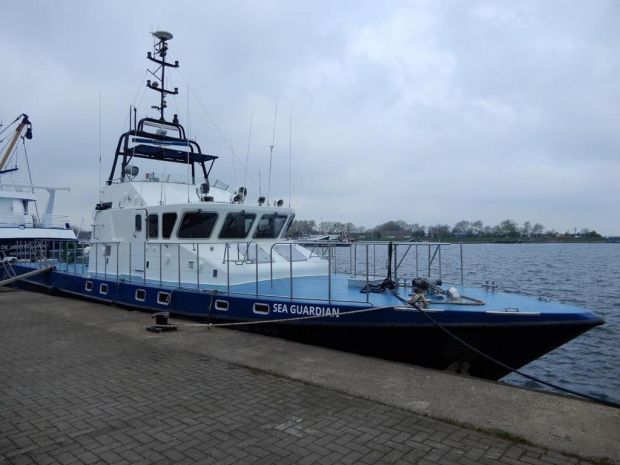

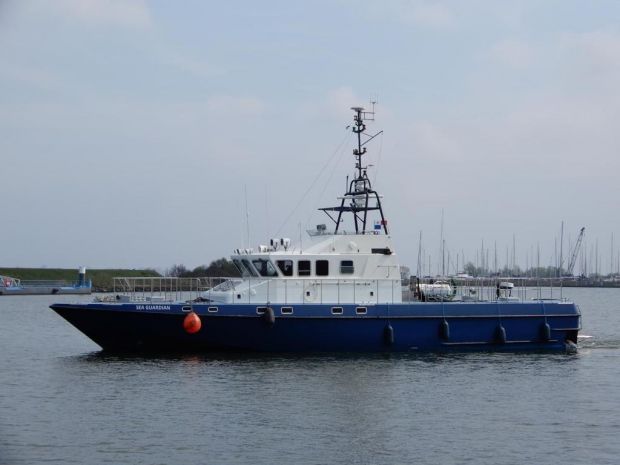

  Type of vessel: Patrol/Survey/Crew/Multi functional.

  Built: 1994.

  Place of Build: VT Halmatic LTD, United Kingdom.

  Design Number: D57.

  Yard Number: MR3676.

  Class: Panama, NTC-000248-22.

  Register: Panama.

  Material: GRP (Glass Reinforced Plastic).

  IMO: 8594382.

  Location: the Netherlands.

  Date of Inspection: The Netherlands, date 07-04-2023.

  DIMENSIONS

  Length overall: 23,50 meters.

  Length Waterline: 20,89 meters.

  Length on Deck: 23,50 meters.

  Beam overall: 6,00 meters.

  Loaded Draught (Actual): 1,80 meters.

  Baseline for Draught Marks to Moulded Shell Line: 1,151 meters below DWL.

  Baseline to Base of Keel: 0,48 meters.

  Lightship Displacement – Daughter Boat Aboard: 60,82 Tonnes

  Lightship Load Displacement – Daughter Boat Aboard: 69,61 Tonnes.

  Creep height without ballast: 14.60 metres.

  Mark number / marks of registration: 8594382.

  Gross Tonnage: 107,56.

  Net Tonnage: 45,40.

  Cruising speed (approx): 18 Knots.

  Speed (approx): 25 Knots.

  PROPULSION SYSTEM

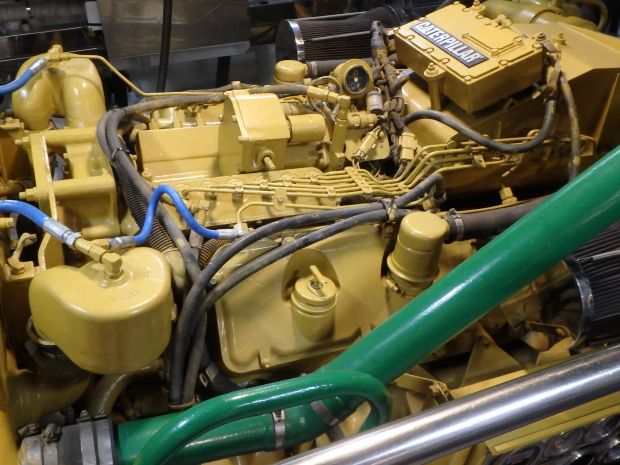

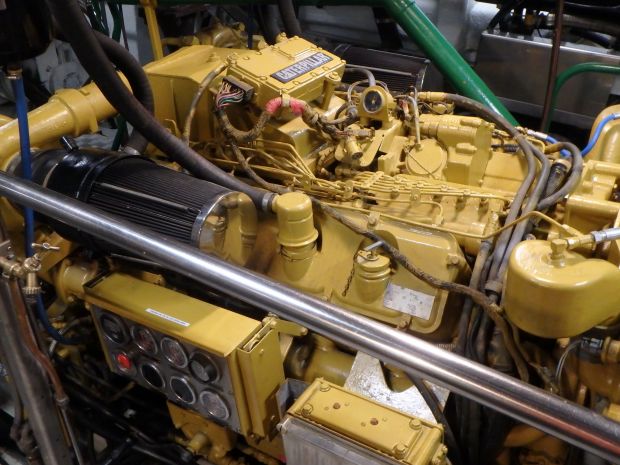

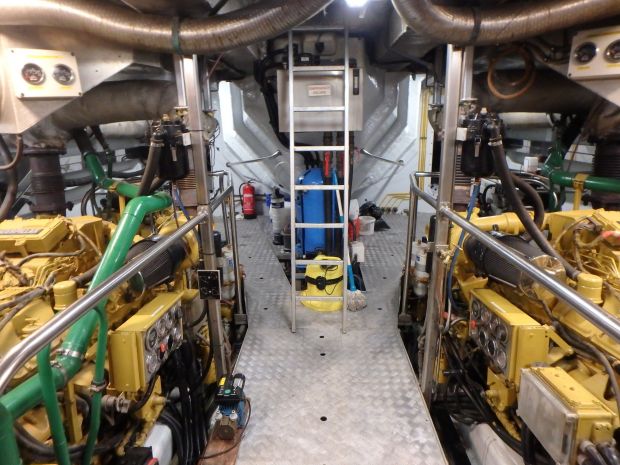

  Main engines: 2 x Caterpillar, Type 3412.

  Engine 1, hours: 9659.

  Engine 2, hours: 10217.

  Engine: Cooled Indirectly.

  Maximum Main Engine Horsepower: 2x 1200 Hp, Total 2400 Hp.

  Drive Propellers: Shaft.

  Gearboxes: ZF 250, BU 2500 nr, Reductie 2,462:1

  Propulsion diameter: 2x 1.000 mm / 2x 4 Blade prop, Variable .

  Bow thruster: Electric hydraulic, PTO, 35 HP, Build 2023.

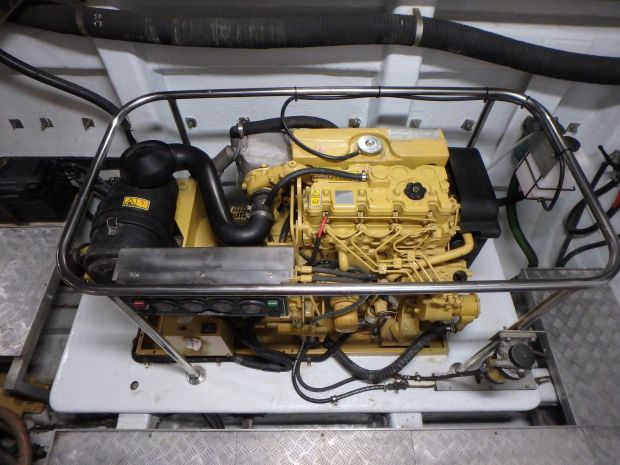

  GENERATORS

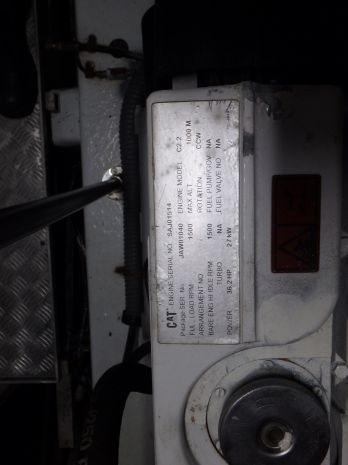

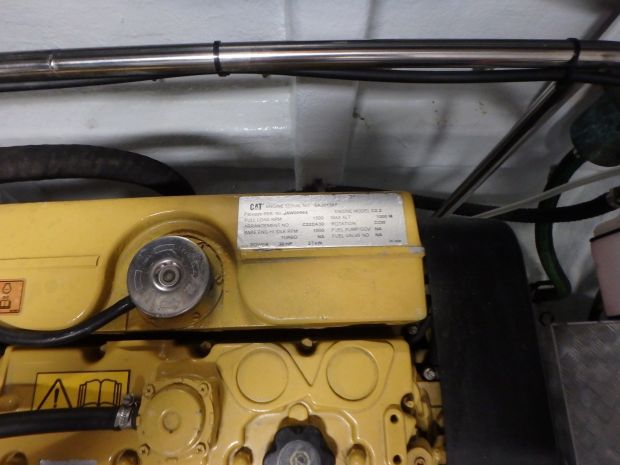

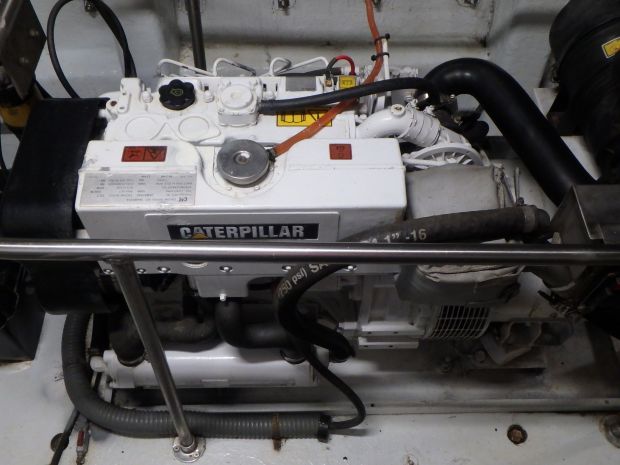

  Generators PS: 1 x Caterpillar, Type C 2.2.

  Capacity: 36.2 HP / 27 KW.

  Generators SS: 1 x Caterpillar, Type C 2.2 .

  Capacity: 36.2 HP / 27 KW.

  Note: Equipped with 2x 27kVA generators, One has less than 200 hours, use the other just about.

  TANK CAPACITIES

  Fuel oil: 9.280,0 Liters.

  Fresh water: 2.200 Liters.

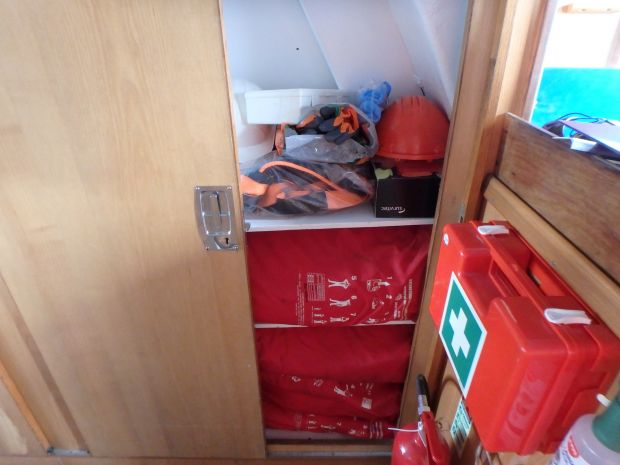

  SAFETY EQUIPMENT

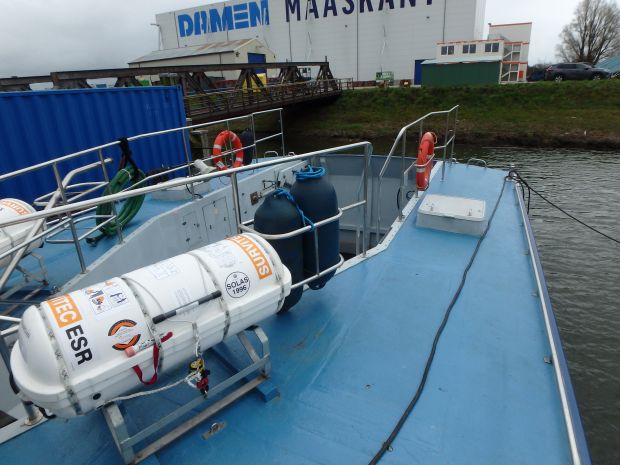

  Life raft: 2 rental rafts.

  Life jackets: 9.

  Immersion suits:

  AED: 1x

  Epirb: 1x

  Sart: 1x

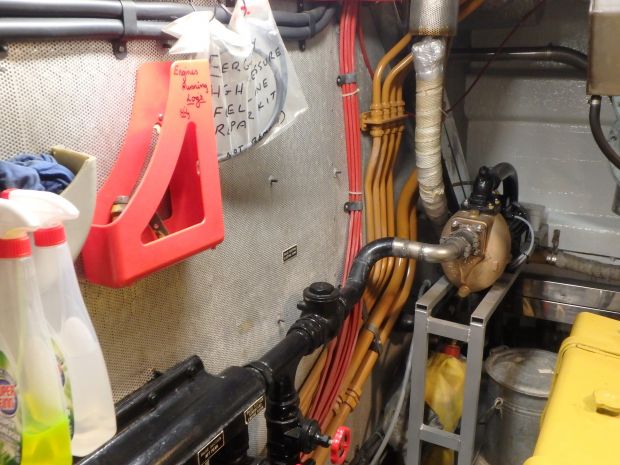

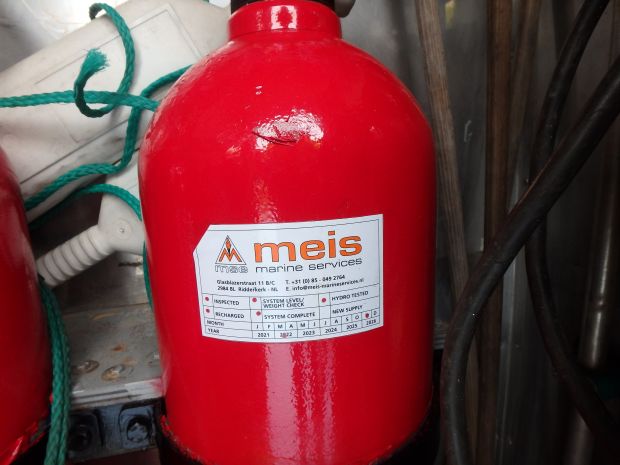

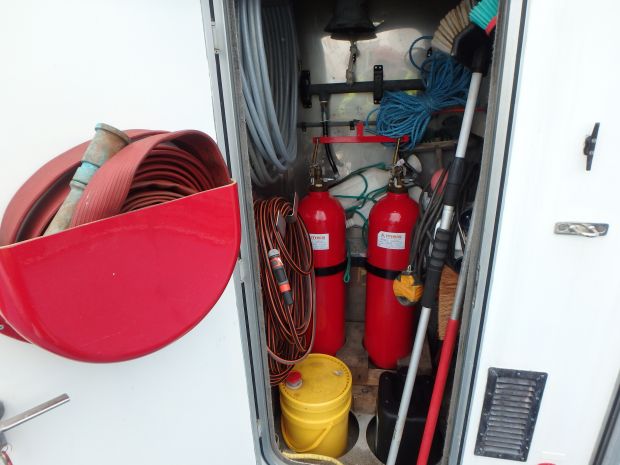

  Firefighting system engine room: CO2

  Firefighting pump: 12x

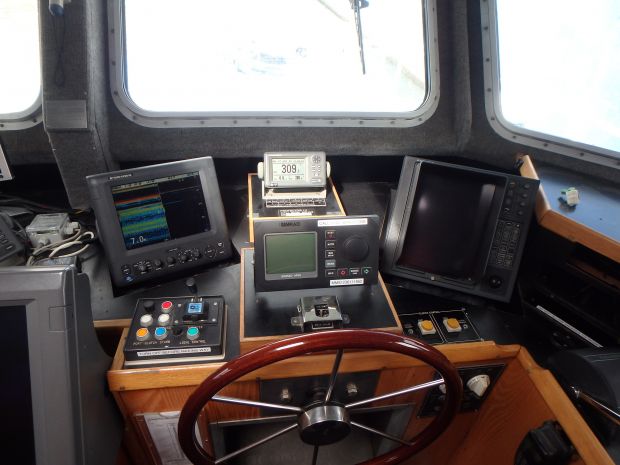

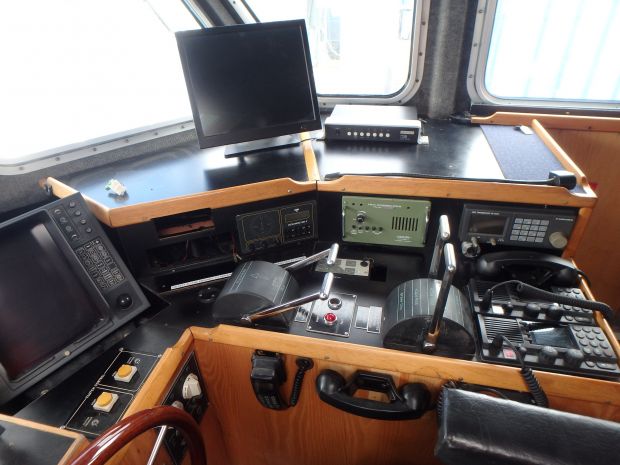

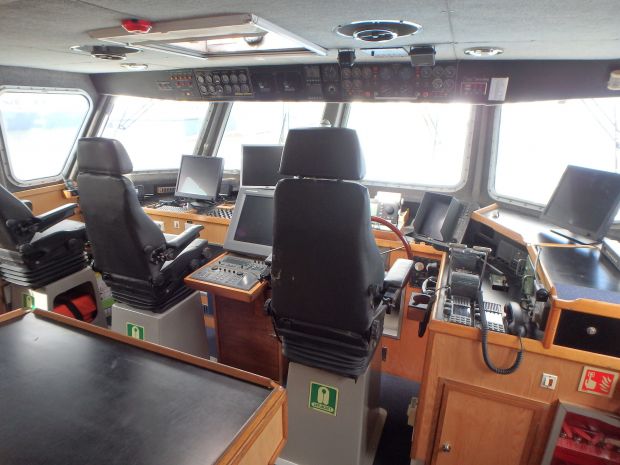

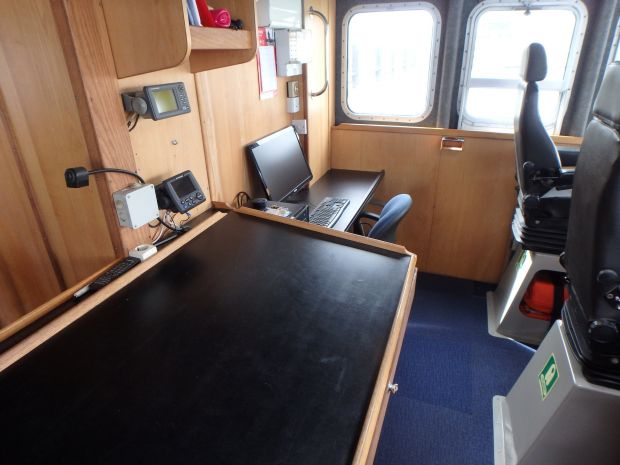

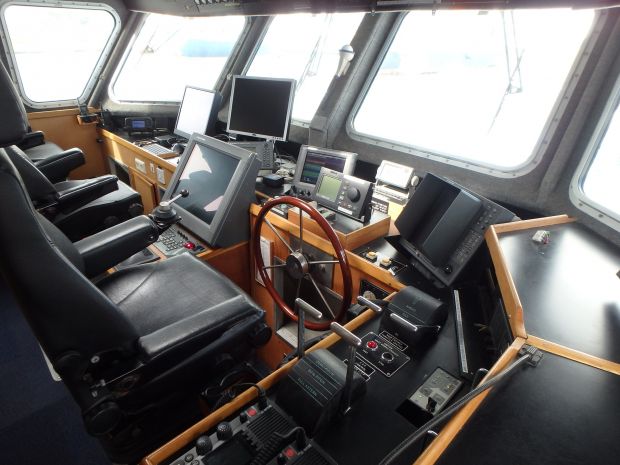

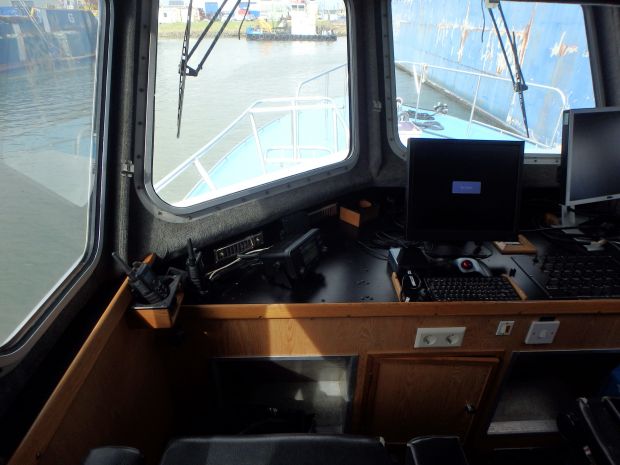

  NAUTICAL EQUIPMENT

  2x VHF Sailor

  2x VHF SHR50 Portable

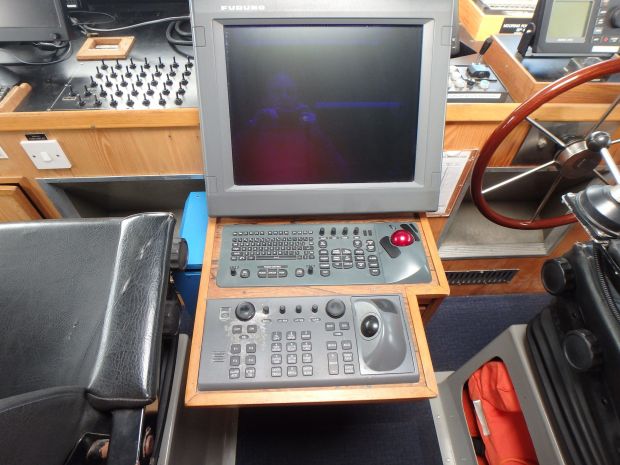

  Radar 1x Furuno

  Radar 1x Furuno Radar

  Echo sounder Furuno

  Watch alarm Marble

  AIS L3

  Autopilot Simrad AP-50

  Navtex Furuno

  DGPS Furuno

  Electronic navigation chart C-MAP

  Intercom

  Wind indicator

  Turn speed indicator ECO 300

  Gyro compass Furuno

  Magnetic compass

  TV / Radio Sea Tel 2498E

  Search light Seematz2 x 1000 W /

  Fuel consumption indicator Flo scan

  Camera system Orlaco

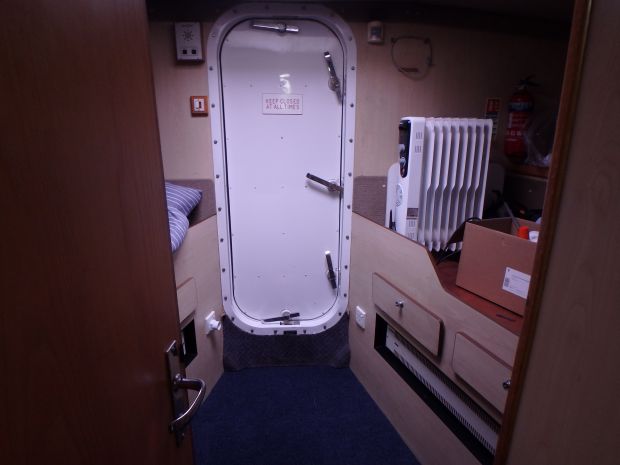

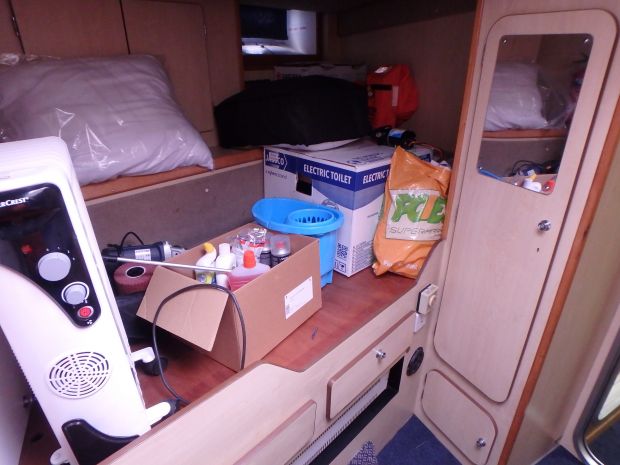

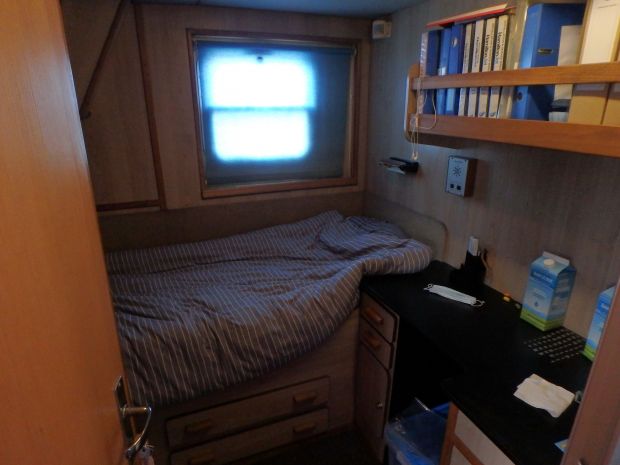

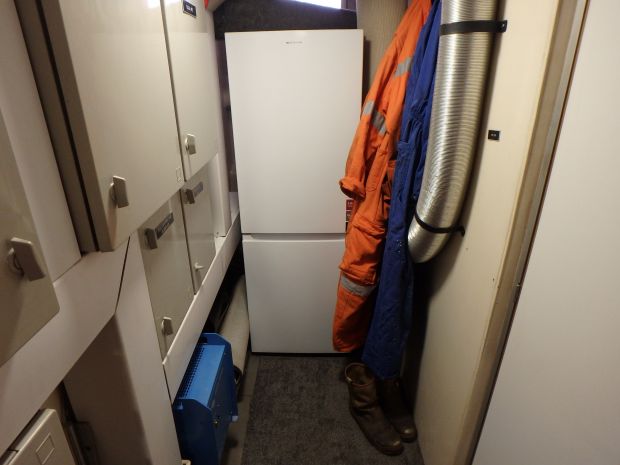

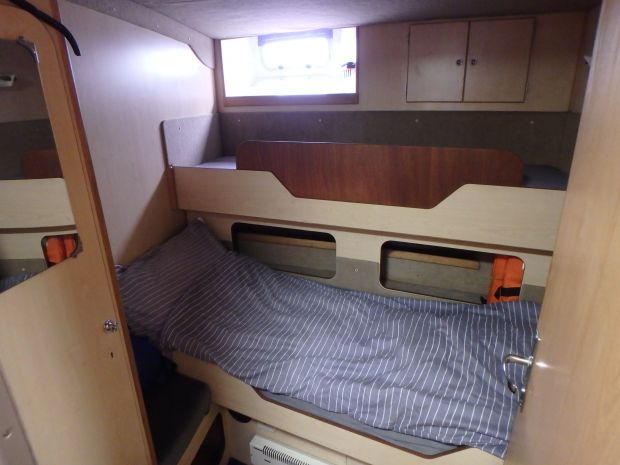

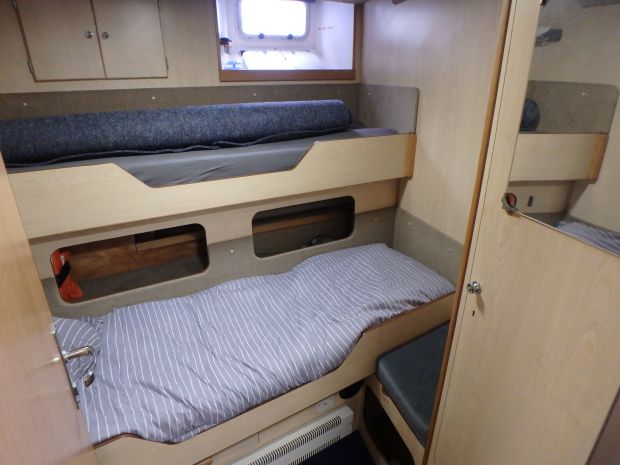

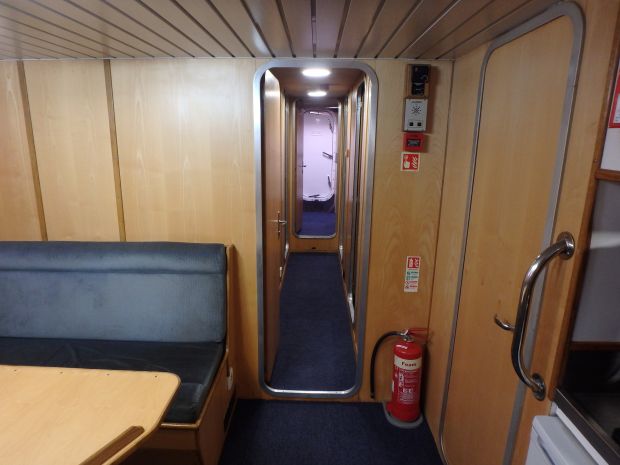

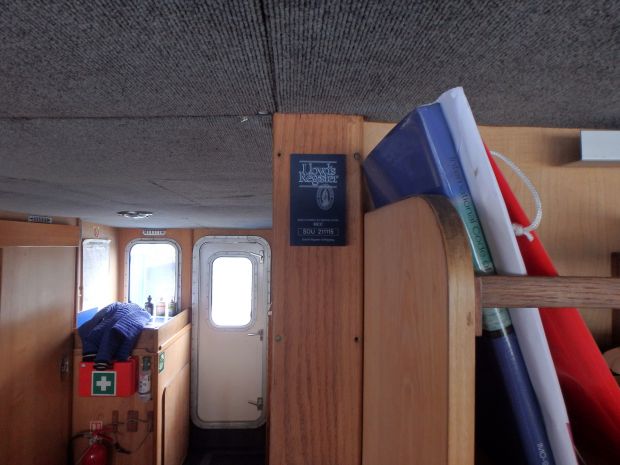

  ACCOMMODATION

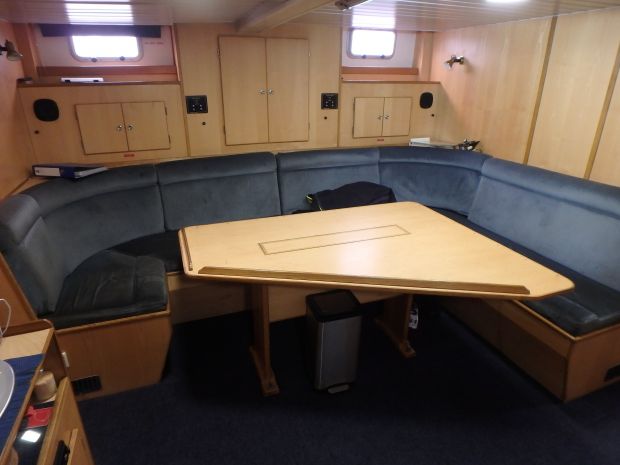

  Galley and half around sit and a table

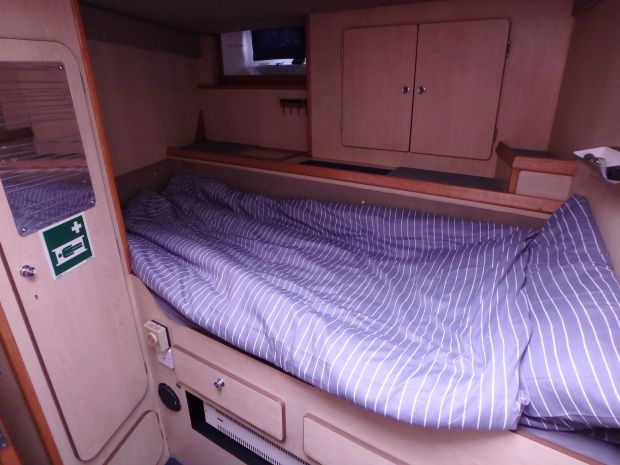

  Single berth number : 1

  Cabins: 4x

  Total number of berth : 7

  Number of Double berth : 3

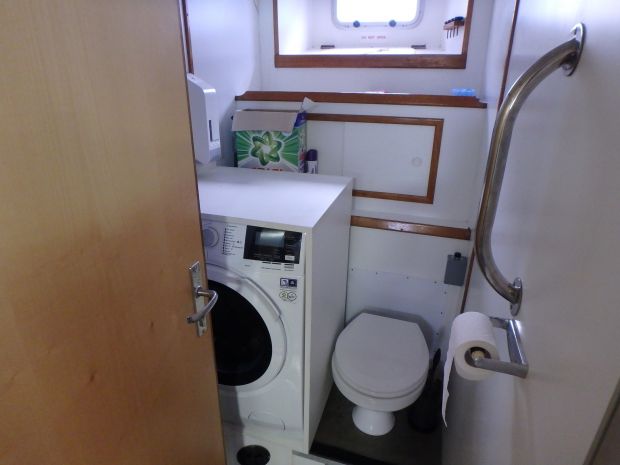

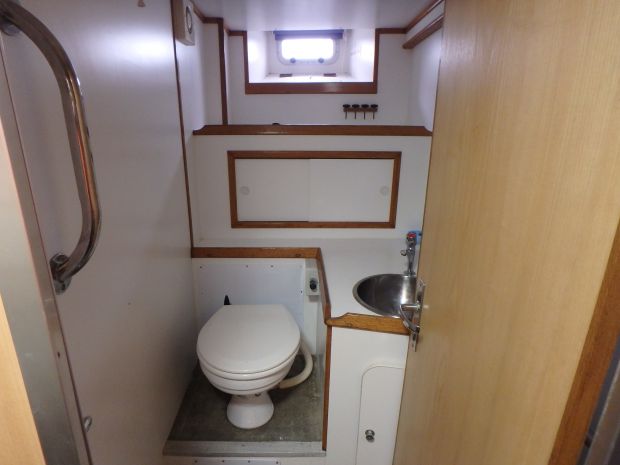

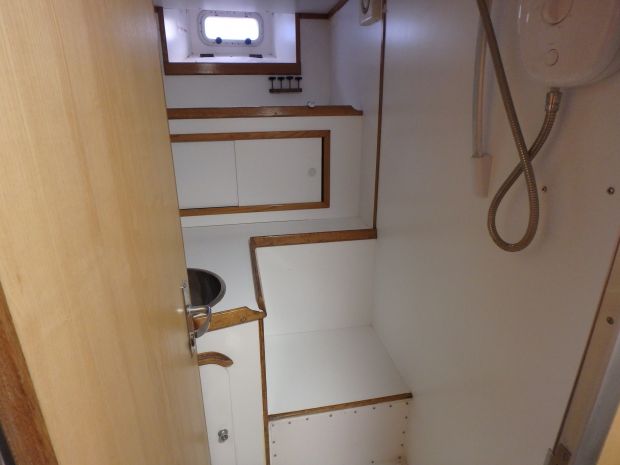

  2 x toilets / 1 x sink and shower

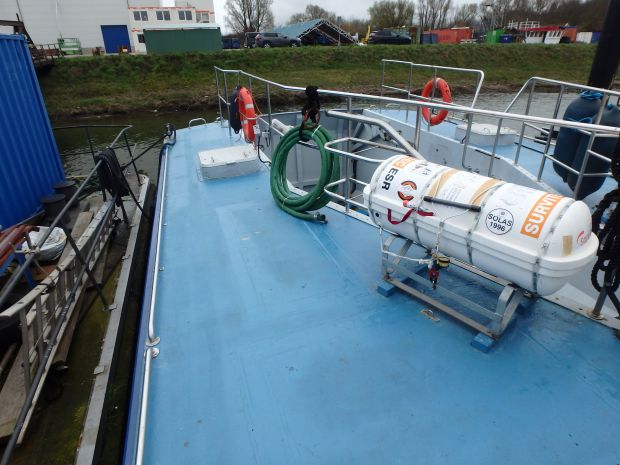

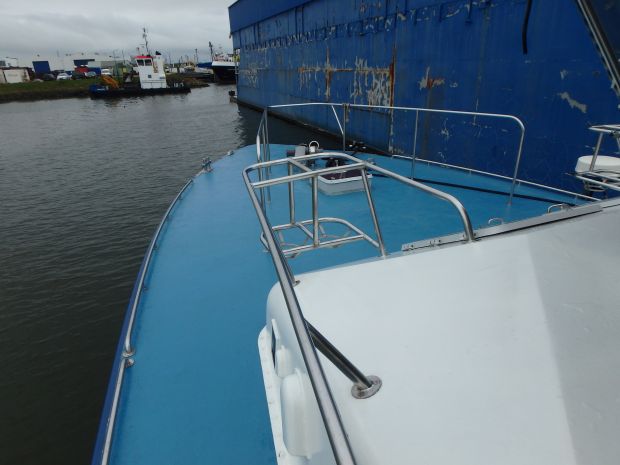

  DECK EQUIPMENT

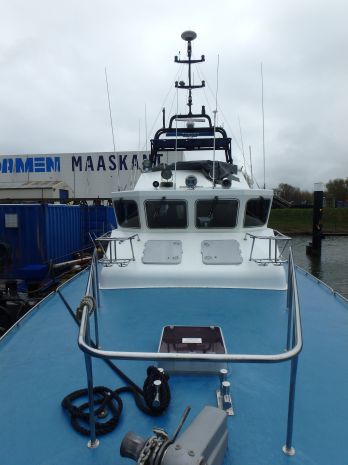

  Electric anchor winch with Anchor 1x 240 kg.

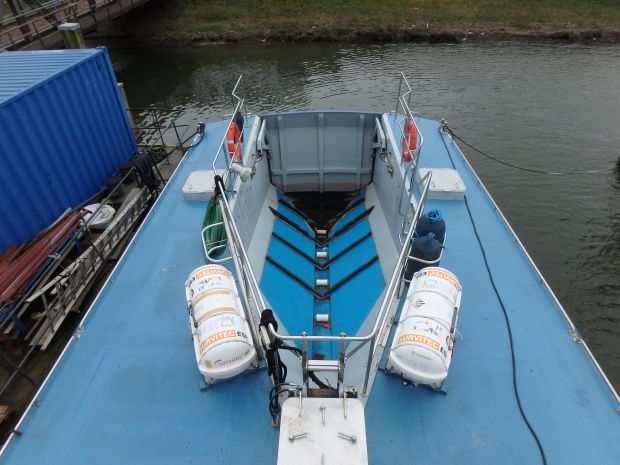

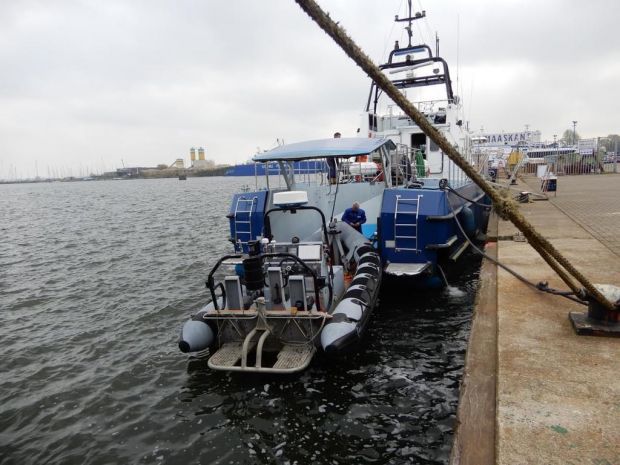

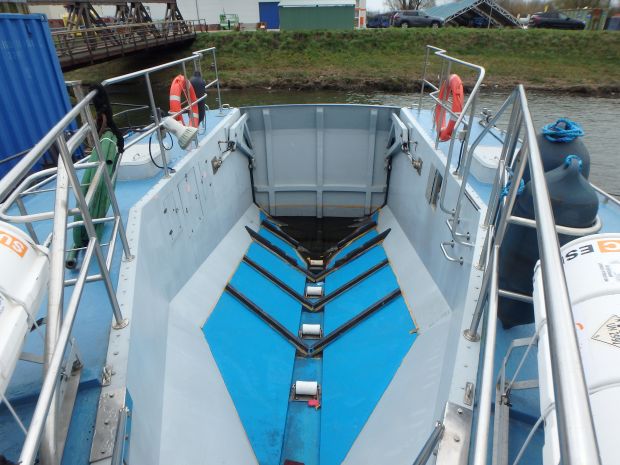

  Slipway with hydraulic stern door, suitable for a 6,80 meters jet drive Rib Anchor chain washer.

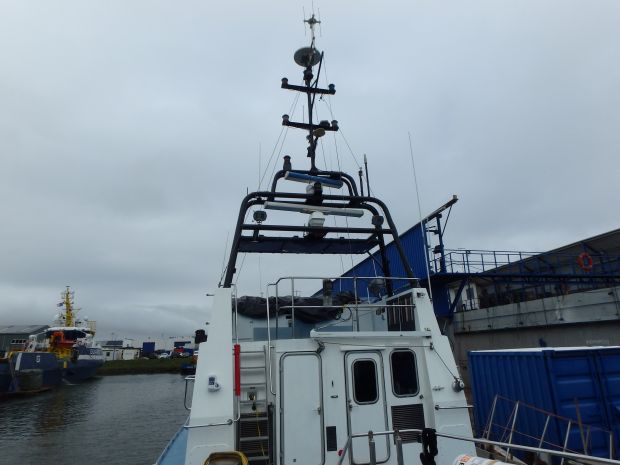

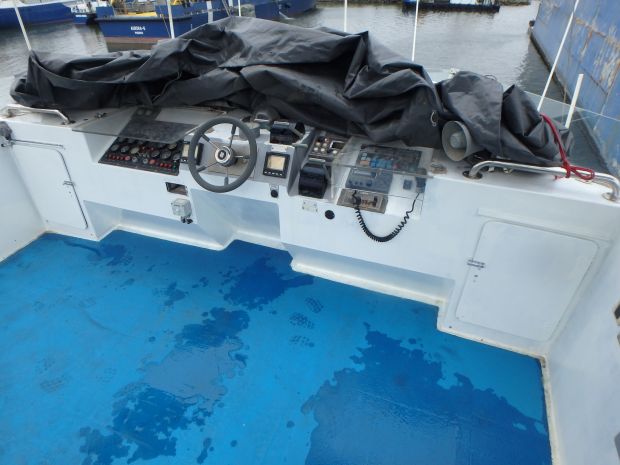

  Flybridge with navigation and operation of the engines and steering.

  Emergency shower.



  For more information, please send an email to info@kshipbroker.com or call +31 (0)612-890610.



  This information is given and received in good faith. Kriesels Shipbroker BV and/or its employees are in no way responsible for this information, nor for the consequences of the state of maintenance and/or equipment in which the ship is at any time. We advise every potential client to have the ship inspected by a qualified expert.


  Click here for more information


• Variable depth:
• Draught: 150 cm

Accommodation

• Berths:
