Year of construction onbekend
Material Aluminium
Length 49.21 feet
Width 14.7 feet

Steyer 126M. Aluminium cruiser with variable draught from 1.30 to 3.14 m and equipped with double rudders.

Basic data of the Atlantic 48

  • Seller:Jachtwerf Atlantic BV & Jachtcentrale Harlingen
  • Reference:Nieuwbouw
  • Brand:Atlantic
  • Model:48
  • Ship's name:Nieuwbouw
  • Motorization:Steyer 126M
  • Category:Sailing Yacht
  • Year of construction:onbekend
  • Material:Aluminium
  • Length:49.21 feet
  • Width:14.70 feet
  • Draught:4 feet
  • Variable draught:Yes
  • Headroom inside:200 cm
  • Beds:6fixed, 6 for staff
  • Country: Netherlands
  • To view in sales harbour/showroom: Yes
  • Price:price on request

Documents

General

  • Remarks: Aluminium high preformance cruising sailing yachts which are built under class A (Ocean class). They're real "All-Weather-Go-Any-Where" cruisers. These Atlantic range sailing yachts are designed by the Atlantic shipyard in cooperation with Dick Zaal. They are robust, have a long waterline and are equipped with a swing or lift keel system and double balance rudders, but a fixed keel is also possible. This combination offers excellent sailing characteristics which can be compared to a fixed keel boat only with the advantage that the draught can be changed. It also offers the possibility to fall dry, sail on shallower waters, enter tidal harbours later and depart earlier. The Atlantics are very sailing friendly due to a sophisticated deck layout so that the hoisting, trimming, reefing and ironing of sails can be done by one person. A deck layout for a touring sailor who likes performance but wants to be able to operate a ship easily. Our Atlantic's also have a lot of built-in comfort, for those moments when it is most needed, namely "at sea". Real comfort is not a question of built-in devices, but above all of sophisticated ergonomics: sitting, working and resting should be easy. The custom-built interior is completely attuned to the manner of use and wishes of the customer. Every Atlantic is a robust, safe floating home and for the owners always a trusted investment. Our quality can be seen and felt and that too is a not insignificant factor when it comes to sailing pleasure.
    Click here for more information

  • Variable depth:
  • Draught: 125 cm
  • Comments: Shape : Round bilge Designer : Dick Hall Shipyard : Atlantic Nieuwbouw BV Ballast (in kg) : 6000 Water displacement (in kg) : 17000 Windows : Lewmar deck hatches and portholes according to drawing Deck design : Aluminium with anti-slip Hull and body are made of aluminium ALMG 4.5 type 5083 H116/H321/W28. Keel/sword : Lifting keel by means of electric/hydraulic double-acting cylinder (CE approval) Rudder : Two rudders with Jefa 60mm roller bearings Steering : Jefa steering with steering wheel Other : -Fixed Windows in construction all around: acrylic 10 and 12mm -Frederiksten/Ronstan deck layout -2 x round disc anodes near propeller shaft, countersunk in fuselage -2 x round disc anodes countersunk in both rudder blades -All hull penetrations are flush mounted in the hull and are made of high quality plastic

Accommodation

  • Headroom: 200 cm
  • Berths: fixed: 6 crew: 6

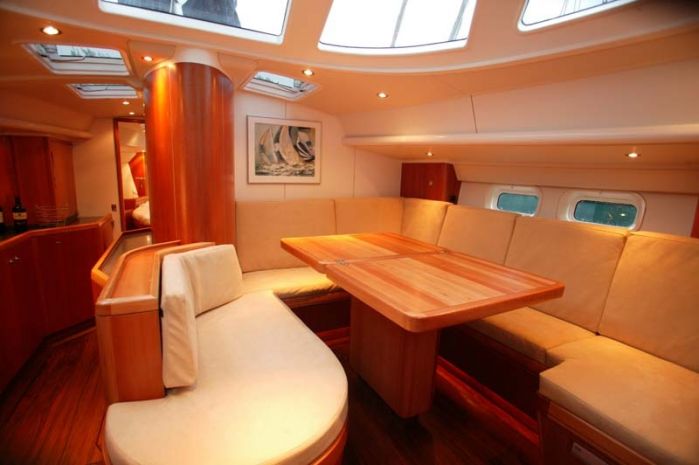

  • Comments: Heating : Webasto diesel heater Oven : Combined in Force-10 cooker Cooking Appliance : Force-10 3-burner cooker with oven (thermally protected) Upholstery, curtains : Colour and material of your choice Material, colours : High quality panelling according to standard American cherry arrangement, Modifications possible Accommodation spaces : 1 Cabins : 3 Headroom : 1,95 mtr Toilet : Lavac vacuum toilet with Henderson pump Shower, bath : Shower room with washbasin, mixer tap with shower head and hose Miscellaneous : FINISHING INSIDE/OUTSIDE - High-quality panelling as standard in American cherry wood species - Interior 5 x lacquered - Hull and body in the colour of your choice - Underwater ship 2 x antifouling - Paint system according to International Paint - Insulation of 40mm Polyurethane CFC-free rigid foam, fire class B2

Engine, electrics

  • Comments: Solar panel : Option Wind generator : Option Inverter : Option Dynamo : 1 x 12Volt & 1 x 24Volt Generator : Option Water pressure system : Automatic drinking water pump Water tank : 870 ltr divided over two water tanks with aluminum filler cap in the gangways Holding tank : 1 x black water tank for toilet & 1 x grey water tank for shower water & washbasins. Water maker : Option Brand : Steyr M126 Hot water : 40ltr boiler via motor & shore power Battery charger : 1 x 12Volt & 1 x 24Volt Battery : 4 x 200Ah Service(24V), 1 x 200Ah Navigation(12V) & 1 x 85Ah Start(12V) Control panel : Switchboard with 20 automatic switches / fuses, Volt and Ampere meter Fuel : Diesel Power : 123 hp Fuel tank : 1000 ltr in two tanks with aluminium filler caps in both gangways Cooling : Intercooling Drive : Reversing clutch with propeller shaft and three-bladed propeller Measuring instruments : Steyr instrument panel Bow thruster : Maxpower bow thruster Voltage : Entire installation double-pole. Service 24 Volt, Navigation & Motor 12 Volt Other : -Diverse light points throughout the ship -Combi tube is provided with 2 x stainless steel sink with mixer tap -Toilet is equipped with stainless steel sink with mixer tap -Complete electrical diagram is supplied -Engine space will be sound insulated all around and will be provided with automatic extinguishing system -Separation transformer -Wall connection with roller cable -2 x 230 volt sockets in ship -Hull isolation control system

Navigation and electronics

  • Comments: Navigation lights : 3-colour toplight with anchor light, steam/deck light, BB & SB light on pulpit and Pitch light Compass : Plastimo Horizon compass on steering column Log/speed : Raymarine i50 Depth : Raymarine i50 Wind : Raymarine i60

Rig and sails

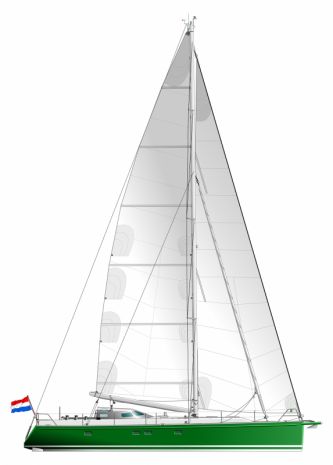

  • Comments: Jib : 62,90 m2 on roller system Breeding : 23 m2 Type : Cutter Sailing equipment : De Vries Sails, Cruising quality Spars, rigging : Hall Spars Aluminium mast and boom according to rigging plan Winches : Andersen: 2 x 58ST & 6 x 46ST Mainsail reefing system : Bindrif Mainsail : 65,70m2 Other : Sailcloth for mainsail

Deck Equipment

  • Comments: Fenders, lines : 6 x fenders & 4 x mooring lines Zeerailing, stern pulpit : stainless steel pulpit & stern chair, 10 stainless steel scepters with double railing wire Swimming ladder : Stainless steel swimming ladder Anchor windlass : Lewmar electric anchor windlass Anchor : Rocna anchor with 50mtr chain and anchor line in anchor bucket Swimming platform : Present Tube cover : Fixed Aluminium tube cover Other : 6 x aluminium frogs 4 x Goiot aluminium deck fans

Safety

  • Comments: Gasbun : Gas bottle with regulator in gasbun aft deck. Gas pipelines and flexible connections laid in accordance with CE standard with inspection certificate Fire prevention : 2 x fire extinguishers CE standard : A Radar reflector : Present Bilge pump : 2 x electric & 1 x hand pump
This boat data may have been translated into your language via an automatic translation program. Errors can occur during this process. Ask the seller for complete boat details before purchasing.
