  THE SEA CLEANER for SALE

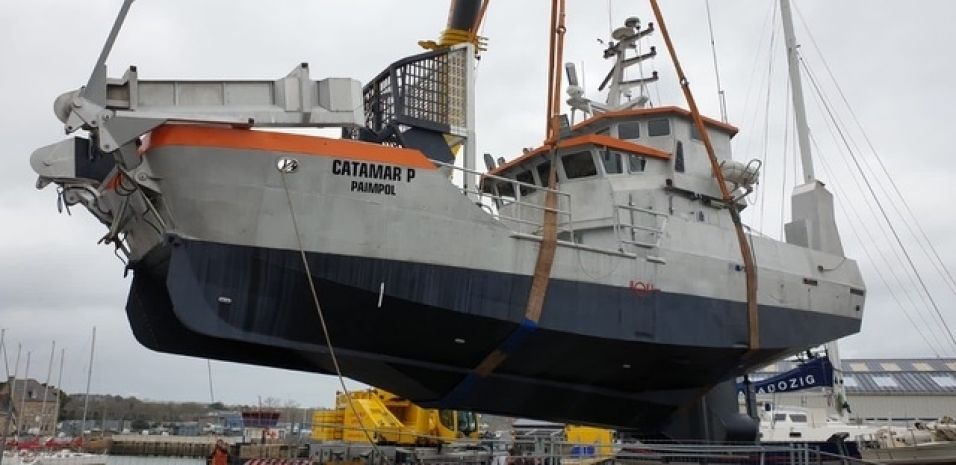

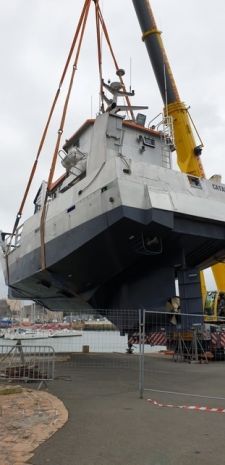

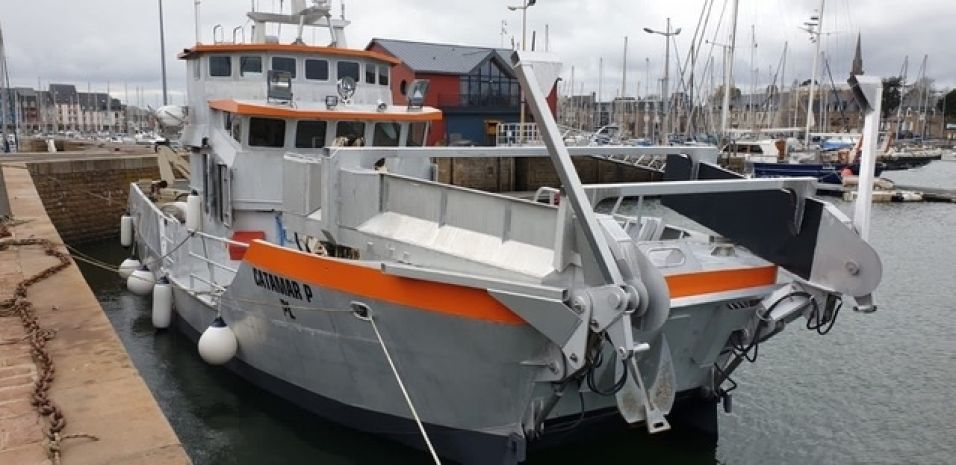

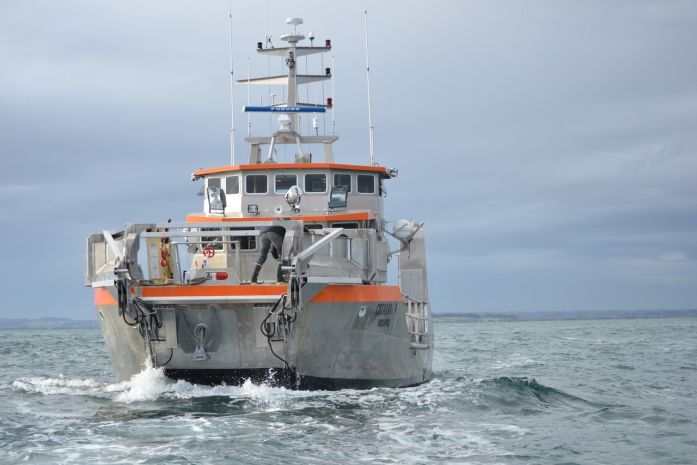

  Presentation of the vessel DEPOLLUTION Ship dedicated to surface depollution (Hydrocarbon / Solid waste / Algae/…).

  Be prepared to intervene in full autonomy and mobility on possible hydrocarbon leaks.

  In this new era where the will of all is to protect our environment, redo your image and equip your company!

  Exceptional yield! 10 000 m³/H

  Multifunctional ship with a unique and innovative depollution technology for the collection of solid and liquid floating wastes, including hydrocarbons. It is fully automated, every depollution manoeuvres are carried out from the wheelhouse. It is a deep-sea vessel capable of staying at sea for several weeks on multi-missions.

  MULTI SERVICES VESSEL

  • Hydrocarbons
  • Floating wastes
  • Algae
  • Fire fighting
  • Offshore watch
  • Transport
  • Craneage
  • Towing

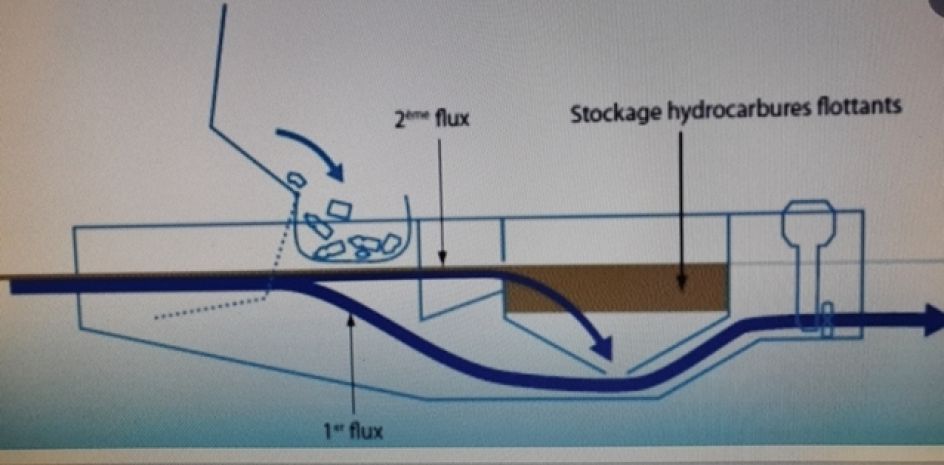

  Hydrocarbons Unequalled and proved yield

  Vacuum suction capacity 10 000 m³/H

  Filtration of solid and liquid wastes

  No pitch and sink rate variation

  Suction by rough sea

  Self-floating arms

  Deployment in less than 2 minutes

  Transfer pump 24/24



  DESCRIPTION

  Length overall: 18.00 m

  Length between PP: 15.50 m

  Width without members: 7.00 m

  Draught: 2.40 m

  Light displacement: 50 t

  Gas-oil capacity: 6000 Liter

  Sweet water capacity: 1800 Liter



  SHIP HULL

  Manufacturing The hull, bilge-type, is built with AG 5083 H111 aluminium.

  The structure is of mix transversal/longitudinal type and entirely welded.

  The reinforced sampling complies with the Véritas Office regulations : for cargo ships for navigation on the deep seas.

  The superstructures, the wheelhouse and the masting are made of AG 5083 H111 aluminium alloy.

  Welding Welders are approved by Véritas Office. X-rays of the weld seams are taken at selected locations.

  Hull tusks DELTA-type defence protection.

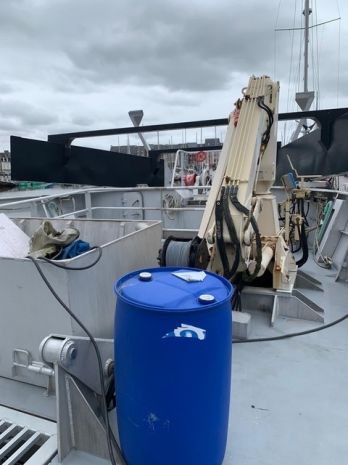

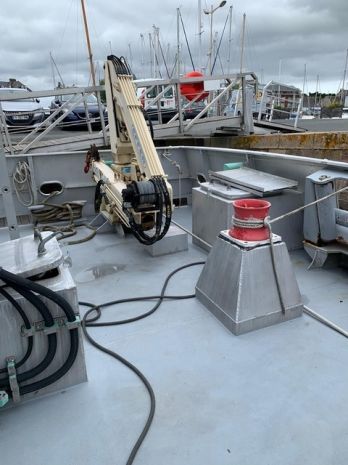

  MARINE HYDRAULIC CRANES

  They are used in particular for handling during embarkation / disembarkation on a quay located at a height of 4.00m.

  They are also used for handling of tarpaulins, booms and large waste materials.

  Characteristics :



  FRONT CRANE

  Capacity 10 t.m

  Maximum reach 8.50m

  Total and continuous orientation without break-even point

  Rotary joint powering

  6 proportional distributors

  Emergency stop switch

  Lifting hook with self-force-locking swivel lock

  Control unit on the turret



  REAR CRANE

  Capacity 3 t.m

  Maximum reach 6.50m

  Total and continuous orientation without break-even point

  Rotary joint powering

  6 proportional distributors

  Emergency stop switch

  Lifting hook with self-force-locking swivel lock

  Control unit on the turret



  ON THE MAIN DECK

  • 1 captain's cabin 2 persons

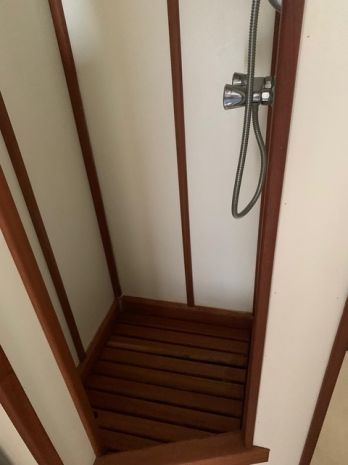

  • 1 sanitary including : 1 WC + washbasin + 1 shower
  • 1 decontamination SAS including : shower, washbasin, locker room

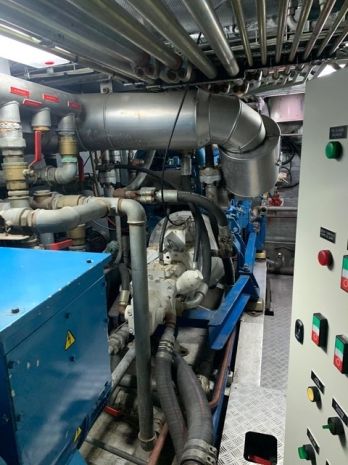

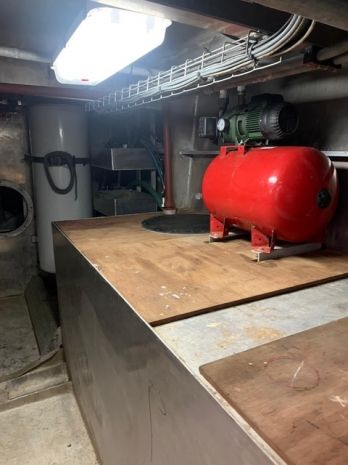

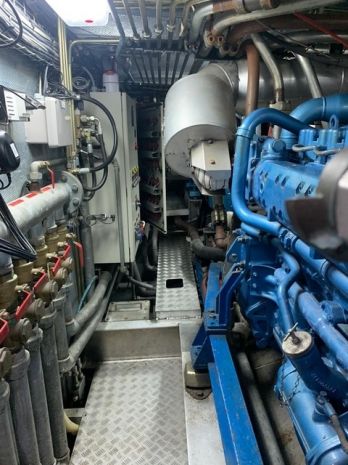

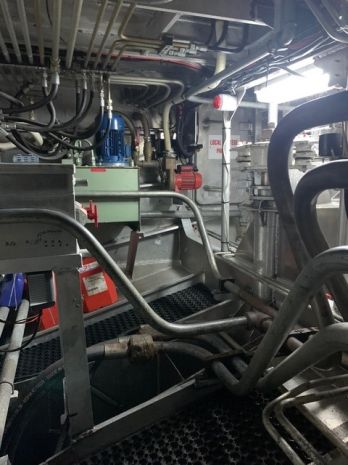

  • Undercarriage wheelhouse: pump room, battery room, CO2 room
  • 1 forward store below fore castle deck

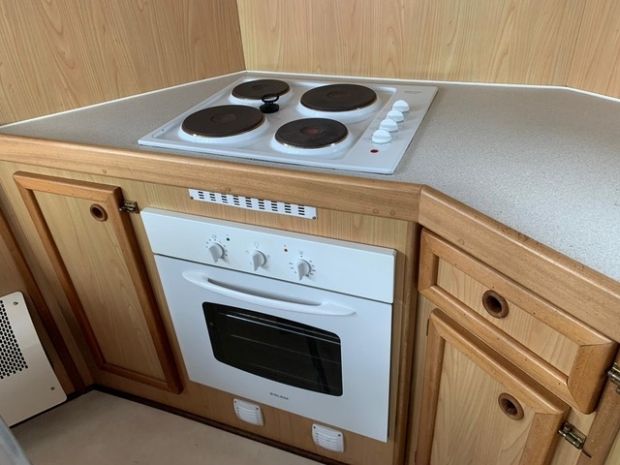

  • 1 refectory
  • 1 living space (TV…)

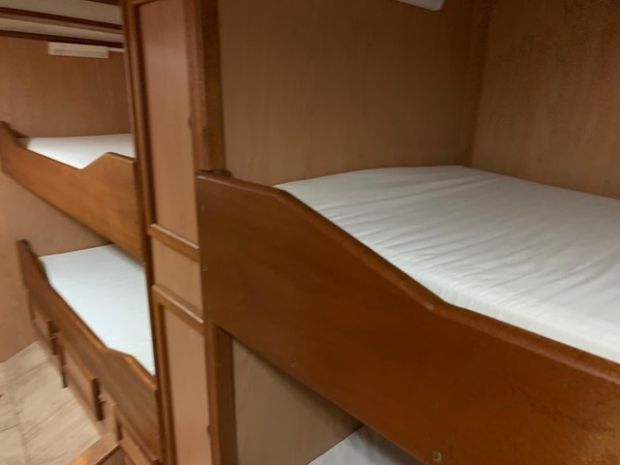

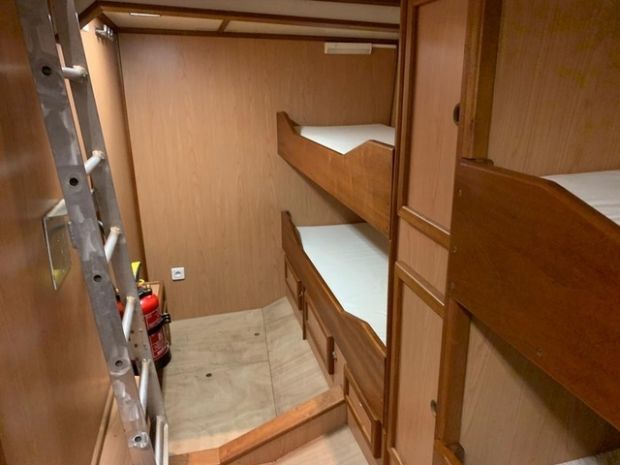

  • 1 quadruple crew cabin On the upper deck :

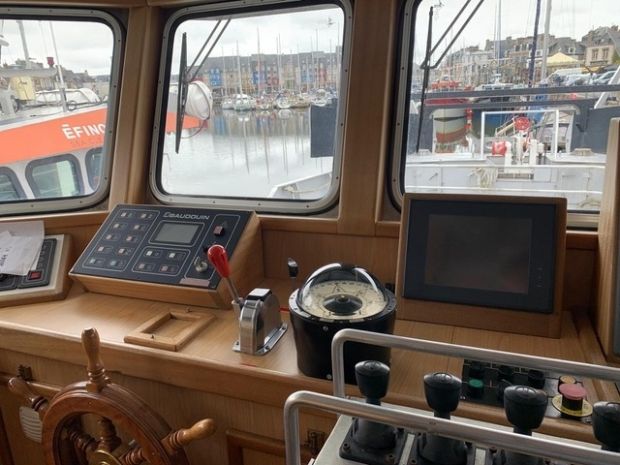

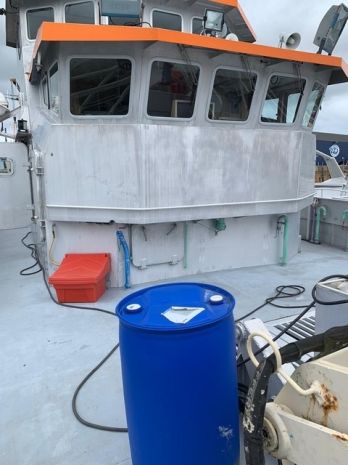

  • A 360° wheelhouse, containing the control station with chart table.

             Accessible from the deck.

  Price on request

  If you interested in this vessel, please send me a LOI on my name.

  I wait for your response.

  Kriesels Shipbroker BV

  René Kriesels
